description

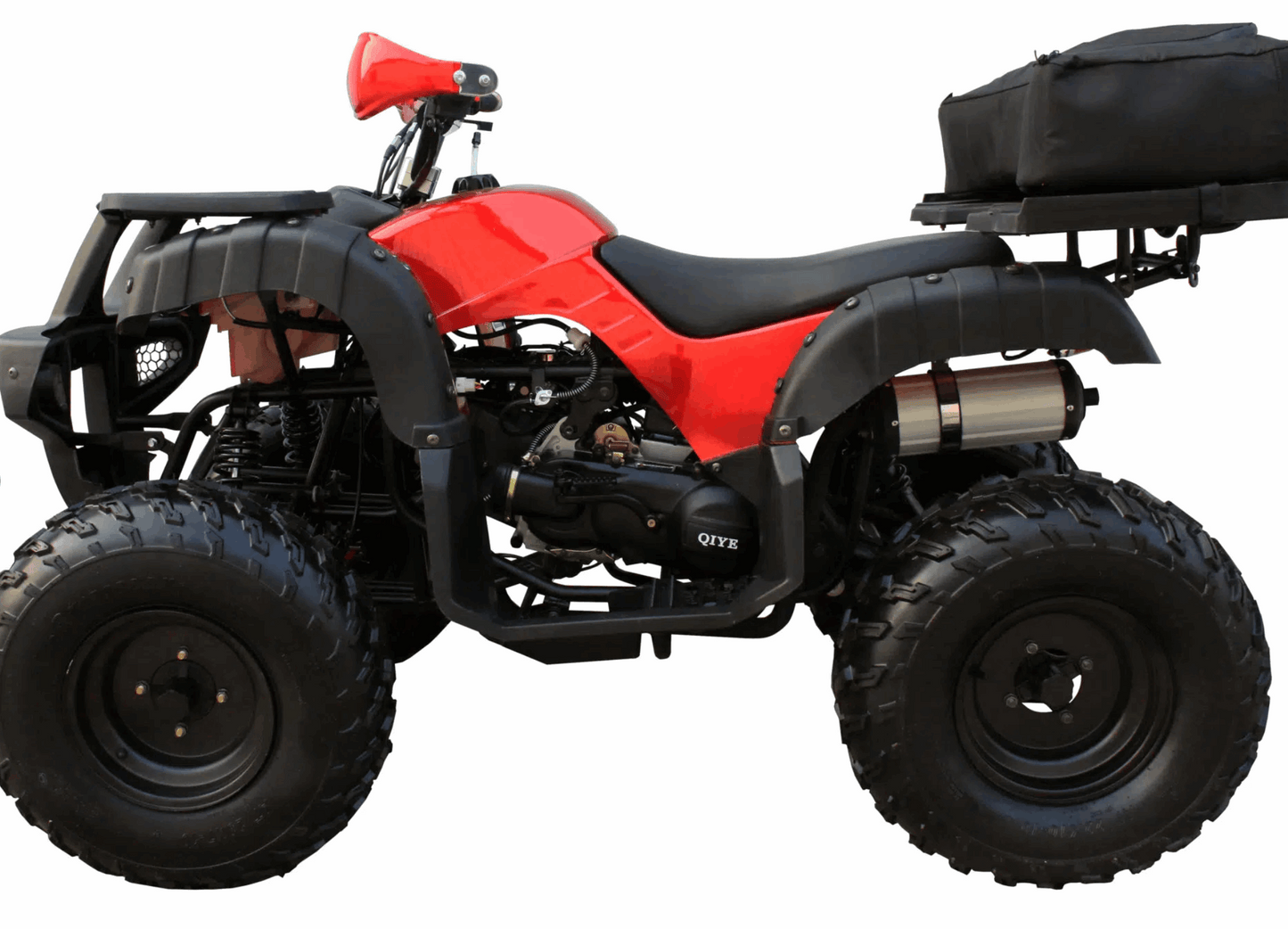

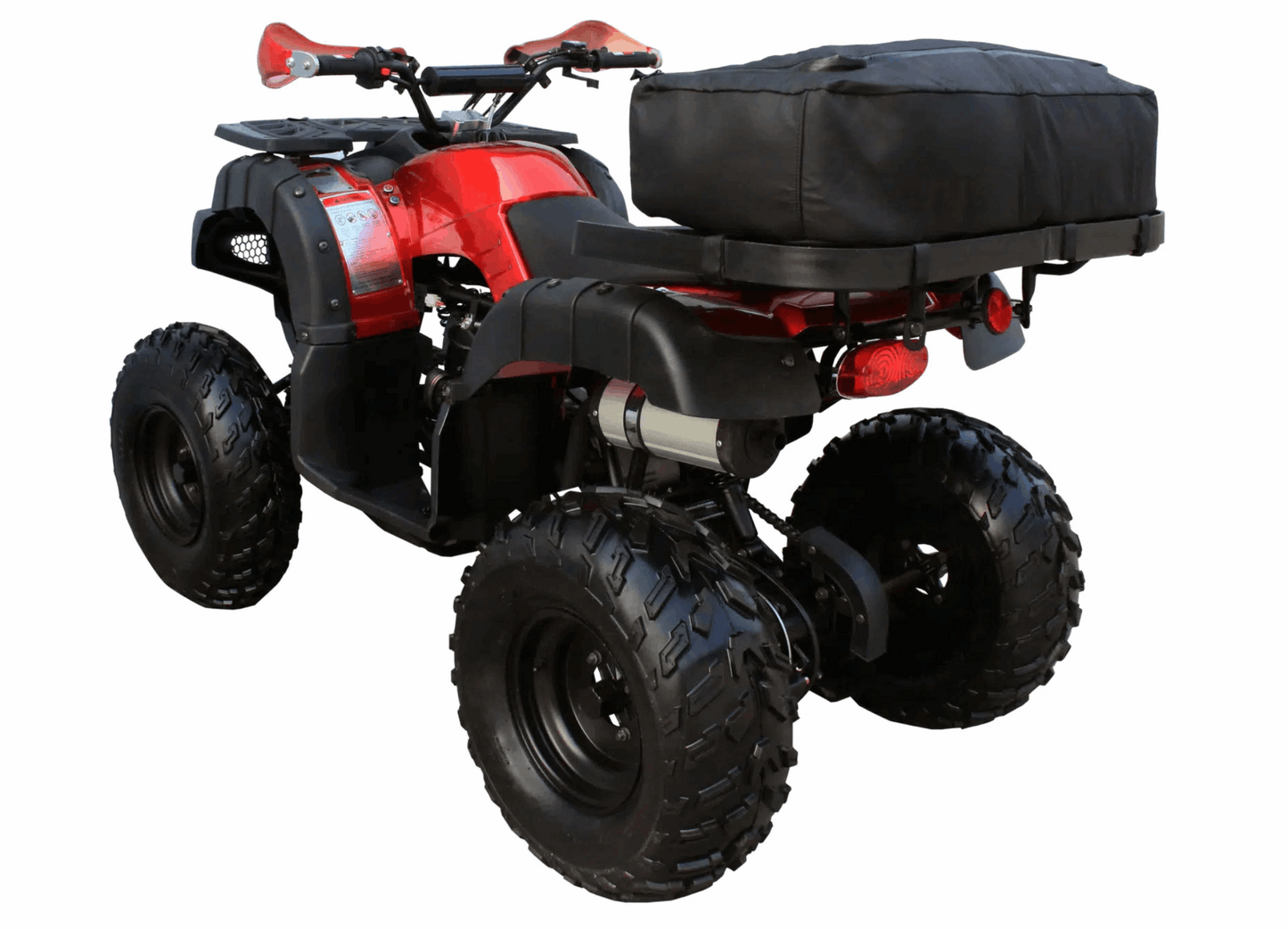

The Coolster ATV-3150DX-4 is the perfect utility ATV to get work done. The bigger, meaner version of the Coolster ATV-3150DX-2, this new model sports all the glory of its older sibling plus an upgraded front and rear rack system, more durable and tougher plastic body accessories, and an overall larger size.
| Model Number: | ATV-3150DX-4 |
| Engine Type: | Single cylinder, 4-stroke, air-cooled |
| Displacement: | 150cc |
| Max Torque: | 9.2.N.m/6,000r/min (N.m/r/min) |
| Max Power: | 6.5kW/8,000r/min (N.m/r/min) |
| Bore Stroke: | 57.4 x 57.8mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 9Ah |
| Clutch: | CVT Automatic |
| Transmission: | Chain, rear wheel drive |
| Brakes Front/Rear: | Hub/hydraulic disc |
| Tires Front/Rear: | 23 x 7 – 10 / 22 x 10 – 10 |
| Fuel Capacity: | 5.6L |
| Weight: | (G.W./N.W) 183 kg/164 kg |
| Wheelbase: | 1215mm |
| Dimensions: | 1524 x 812.8 x 762 mm |
| Height to Seat: | 620mm |
| Min. Ground Clearance: | 165mm |
