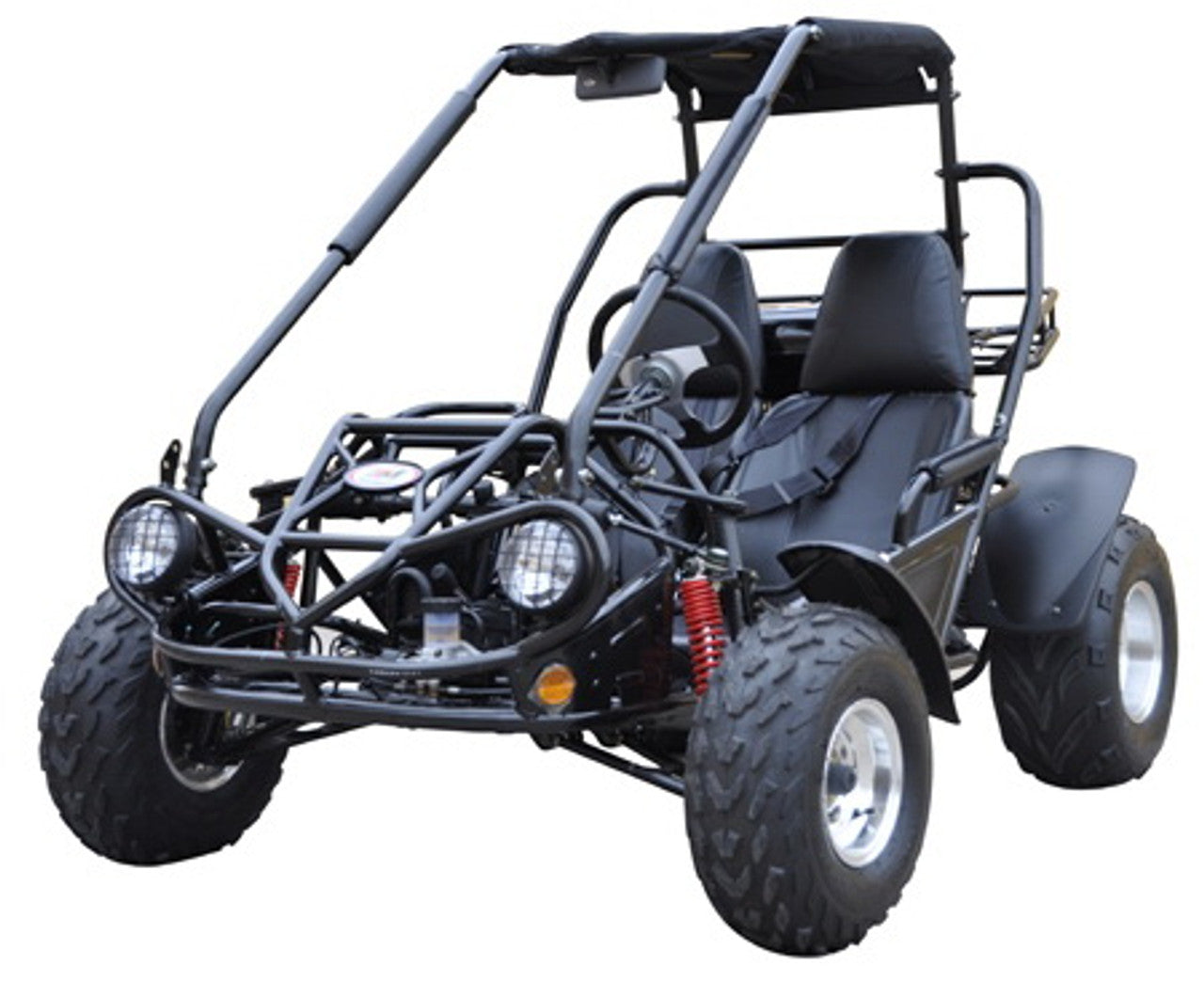

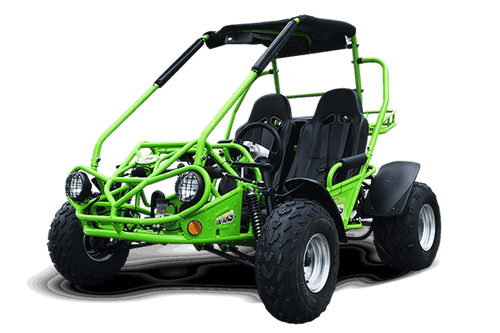

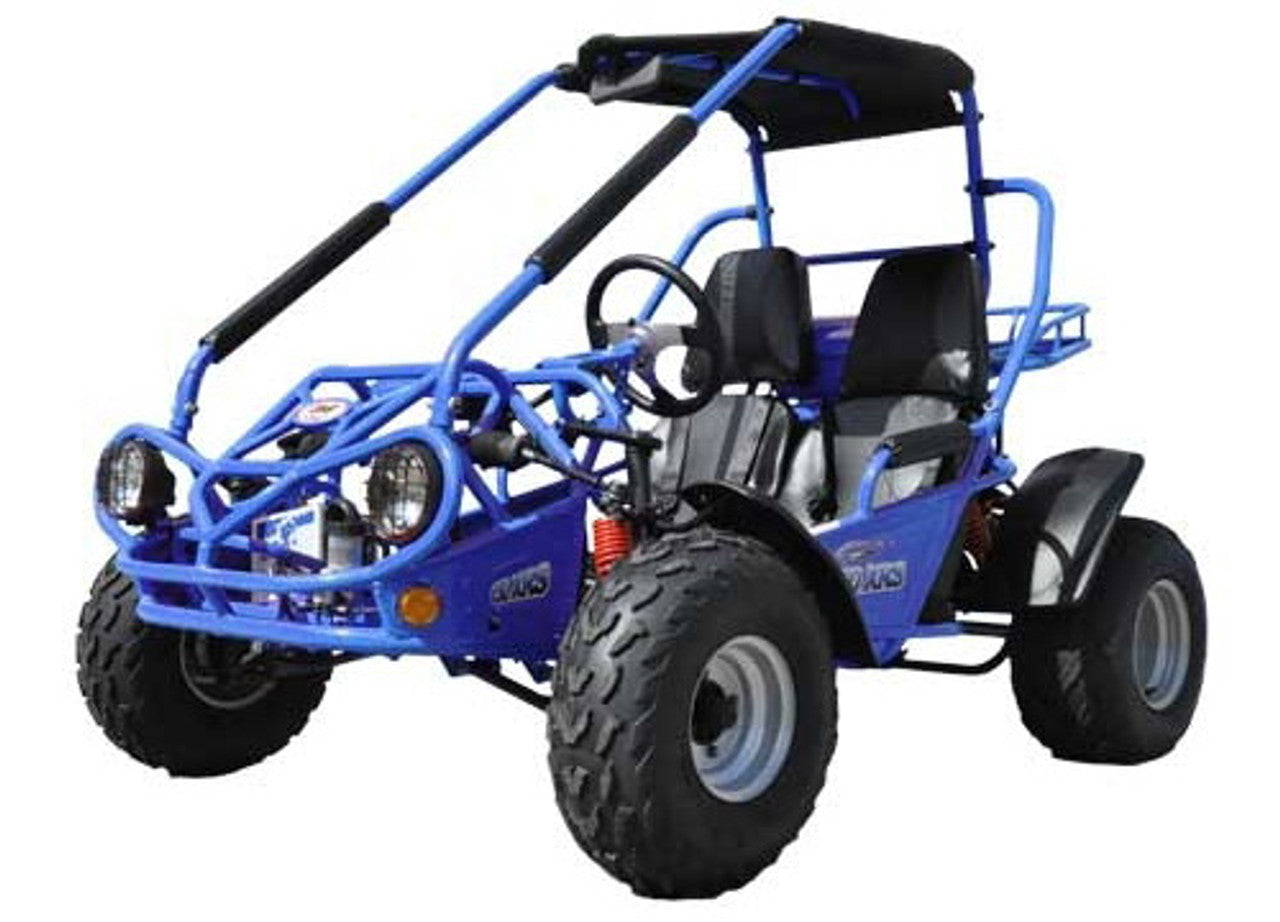

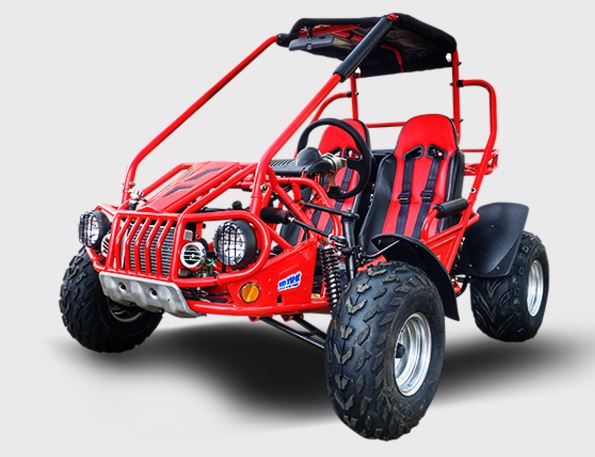

The TrailMaster 200 XRS is an upgrade from the 150XRS, one of our best-selling adult models. The 200 XRS has a bigger 169cc GY6 11.1HP air cooled electric start engine that will push 40mph. It's packed with great features like a stainless steel performance muffler, rack and pinion steering and adjustable steering wheel, side mirrors and a bikini sunshade top for those sunny days on the trails!


The buggy also comes with bucket seats and five-point safety harnesses. The driver's seat is adjustable from 36 to 43 inches from the back of the seat back to the pedal so it can fit any size driver. The kart's beefy steel wheels feature 20X7-8 front & 21X10-10 tires rear and ride on adjustable heavy-duty shock absorbers and a 4-point rear swing arm for enhanced off-road handling. F&R Hydraulic disc brakes provide huge stopping power. Extra amenities include a parking brake, H&L beam head lights, all-around fenders, trailer hitch and large utility rack.

ENGINE INFORMATION


• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/8000rpm
• Max torque: 8.1 lb ft/6000rpm
• Bore x stroke: 2.4x2.28 inches
• Max speed: 43 mph
• Climbing ability: 18 degrees
• Ignition: ECU
• Starting system: Electric
• Battery: 12V 10Ah
• Engine oil: SAE 15W-40

GENERAL INFORMATION


• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension, F / R: Double A-arm / swing-arm
• Brakes, F / R: hydraulic brakes, Disc
• Tires, F / R: 20x7-8 / 22x10-10
• Fuel capacity: 2.25 gal
• Weight, G.W. / N.W.: 573 / 485 lbs
• Max load: 500 lbs

DIMENSION INFORMATION


• Wheelbase: 59 inches
• OA L x W x H: 85x53.1x57.5 inches
• Height to seat: 13.8 inches
• Min ground clearance: 6.7 inches

KEY FEATURES


• Fully automatic high performance GY6 engine with internal revers set up
• Electric start with kill switch
• Adjustable rack and pinion steering wheel
• Large tires: Fron 220×7-8, Rear 22×10-10, Steel Wheels
• Individual sporting seats with four-point safety seatbelts
• Polished stainless steel muffler
• Adjustable driver seat: pedal to seat back adjustable from 38″ to 43″
• Adjustable heavily duty front and rear
shock absorber
• Front and rear hydraulic disc brake, barking brake
• 4-point rear swing arm
• 4-wheel fenders, trailer hitch, Bikini sunshade top
• Large rear utility rack, Large gas tank
• High-low beam head light, central rear view mirror.
