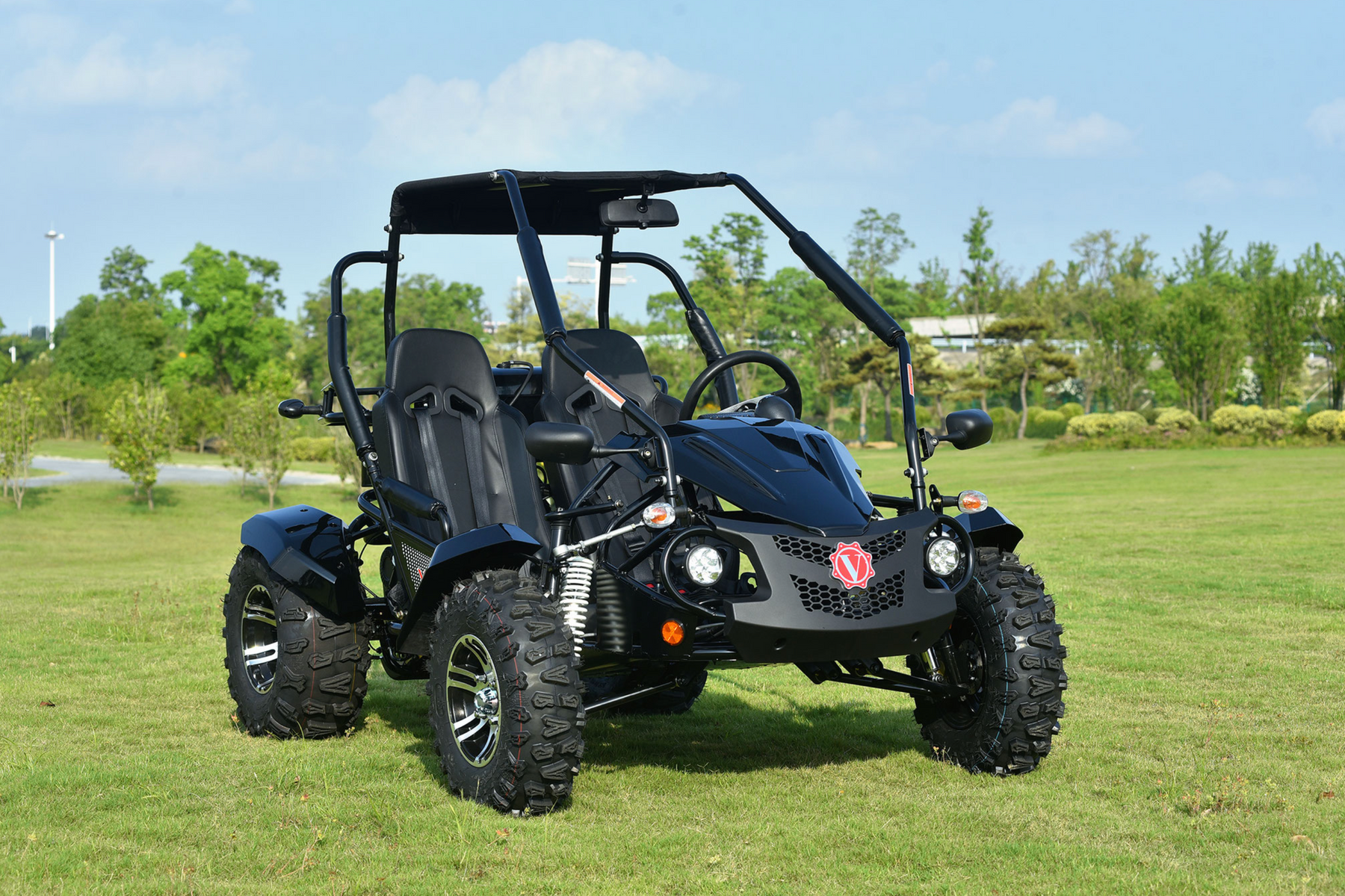

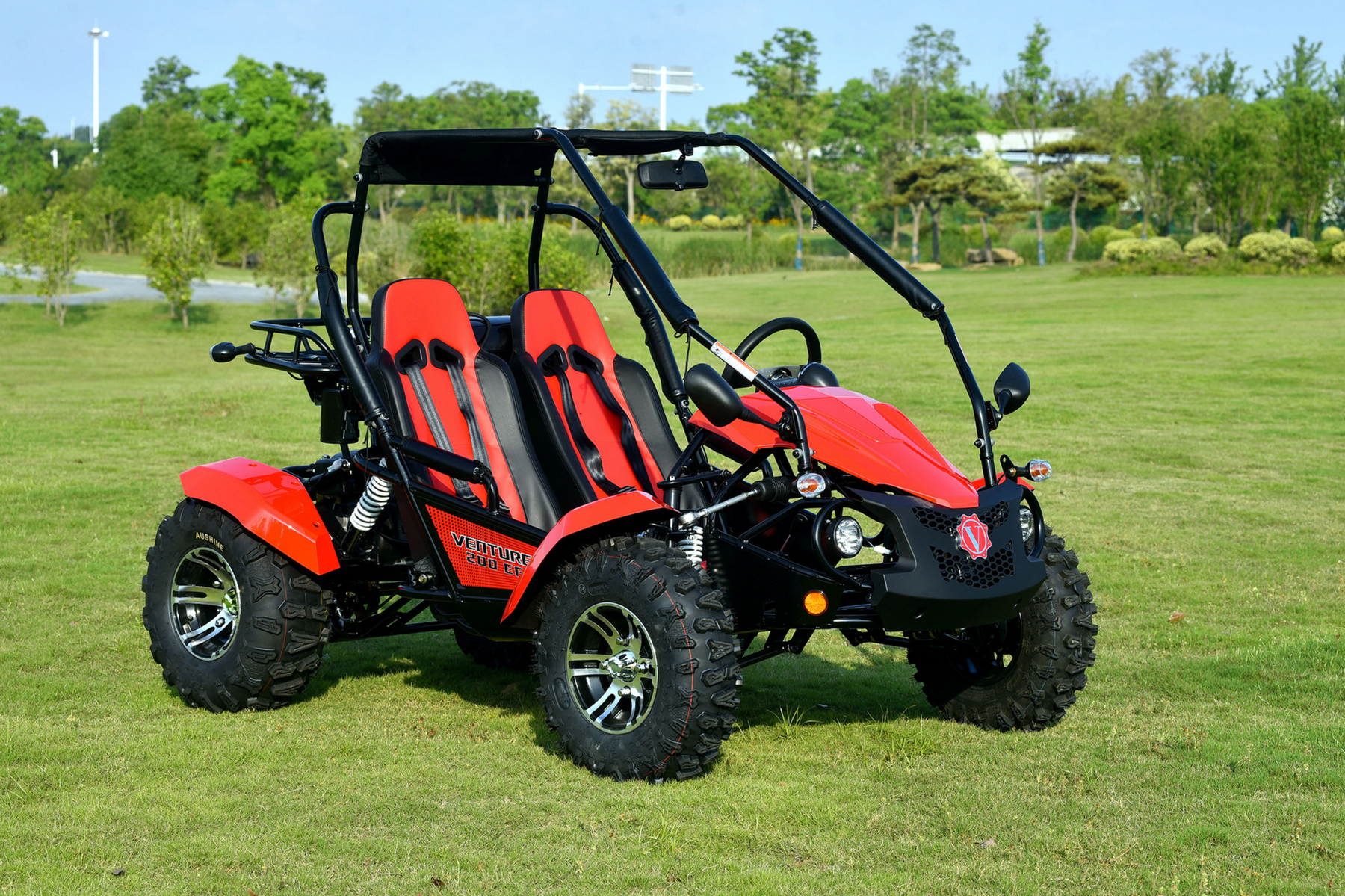

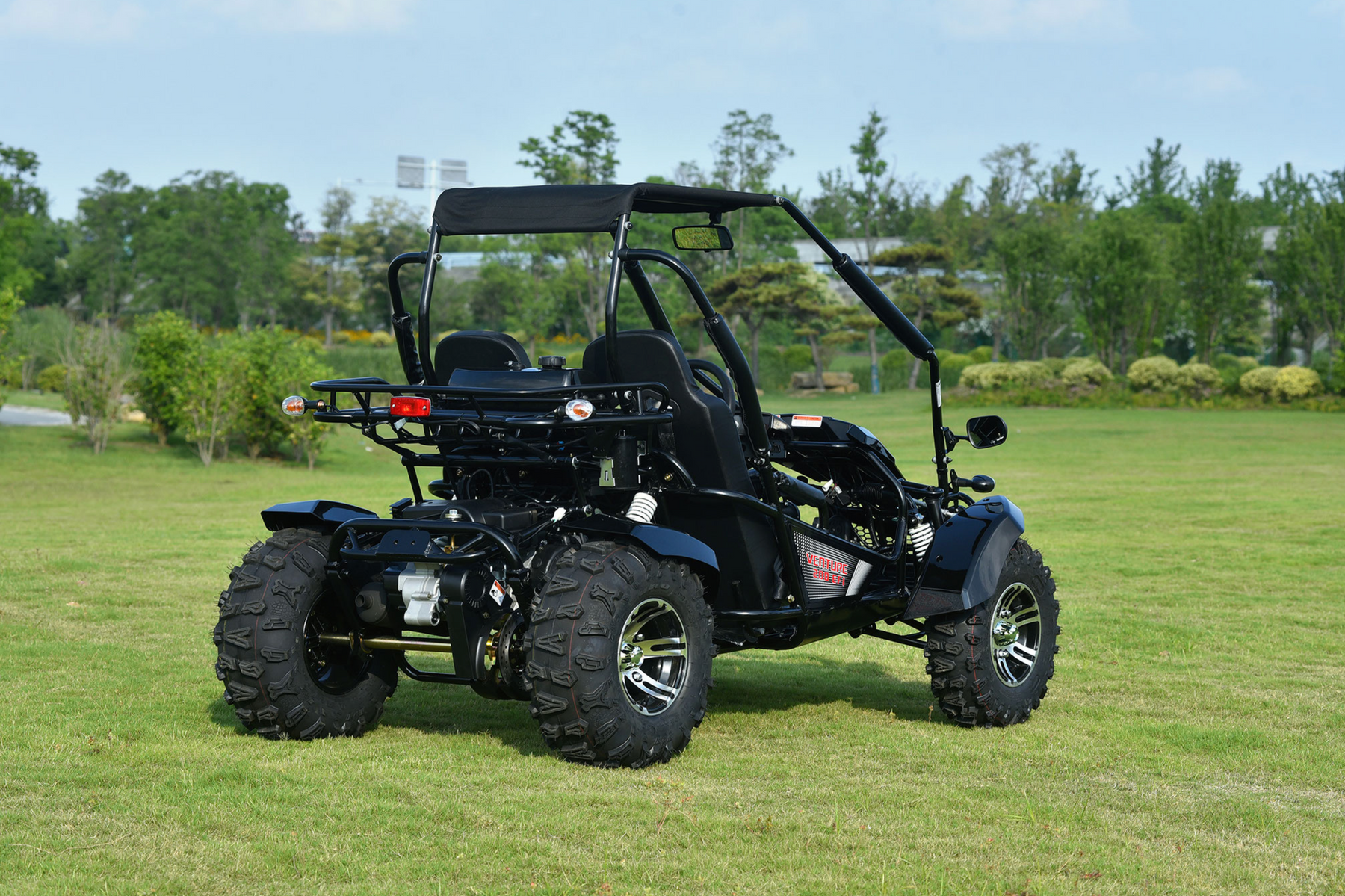

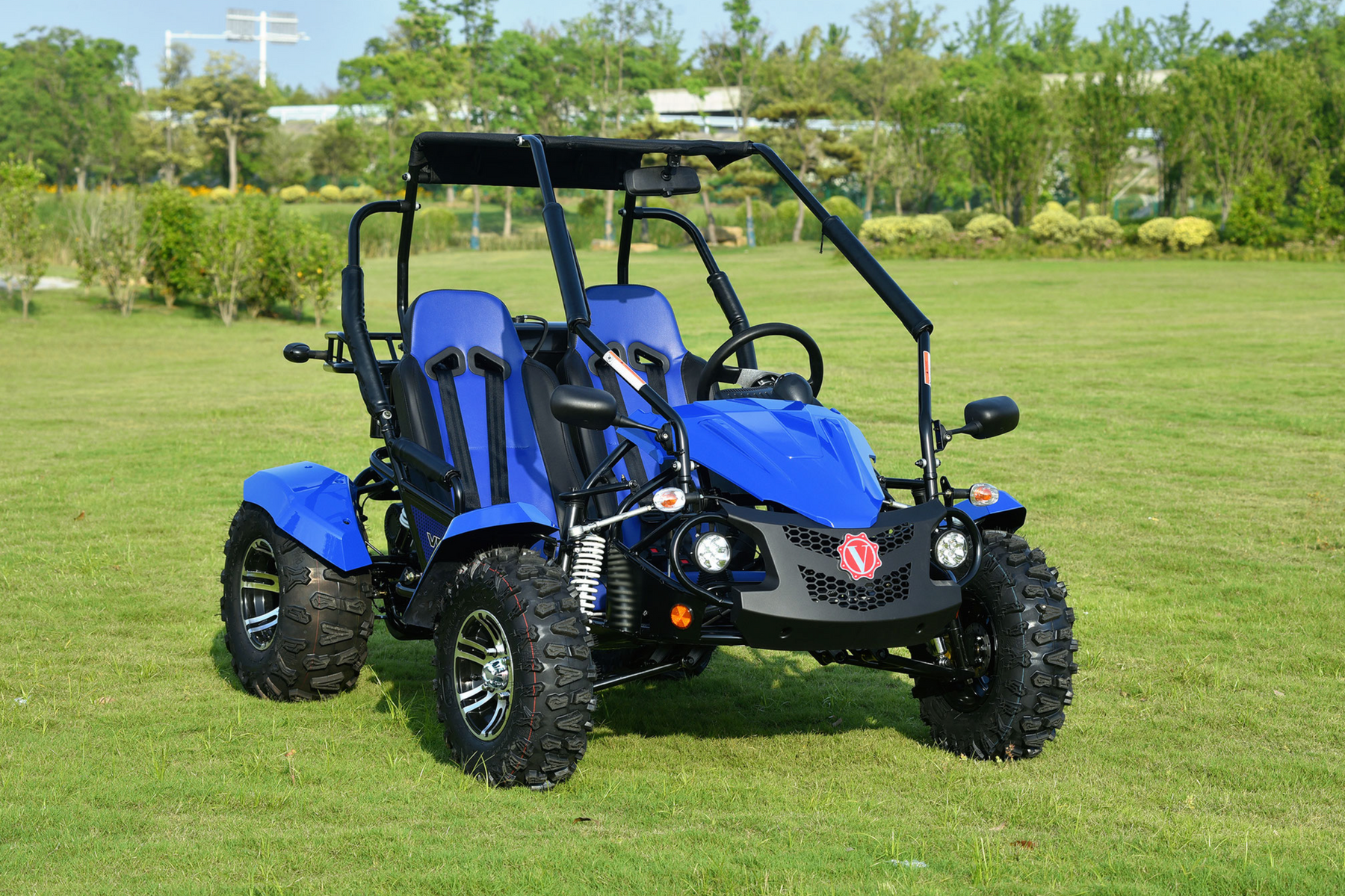

200CC (EFI) GOKART | |
Vehicle | |
Overall Length | 89.8 in. (2281mm) |
Overall Width | 62.5 in. (1588mm) |
Overall Height | 57.5 in.(1460mm) |
Front Tire | 19×7-8 |
Rear Tire | 22×10-10 |
Wheelbase | 60.6 in.(1540mm) |
Min. ground clearance | 2.8 inch (71.1mm) |
Dry Weigh | 529lbs (240kg) |
Front Suspension | Independent Mcpherson |
Rear Suspension, | Drag arm suspension |
Front Brake | Ventilated Hydraulic DIsc |
Rear Brake | Ventilated Hydraulic DIsc |
Fuel Tank Capacity | 2.3gal (8.5L) |
Battery | 12V 9Ah |
Maximum Speed | 38mile (60km/h) |
Engine | |
Engine Type | Four-Sroke, Single Cylinder |
Displacement | 168.9 cc |
Bore & Stroke | 61 × 57.8 mm |
Compression Ratio | 9.2:1 |
Fuel System | Electronic Fuel Injection (EFI) |
Ignition | Electronic Control Unit (ECU) |
Transmission | Automatic F-N-R |
Drive Train | CVT belt, Chain drive |
Cooling | Air cooling |
Maximum power (Kw /r/min) | 8.3KW/8000RPM |
Maximum Torque (Nm /r/min) | 11N·m/6000RPM |
