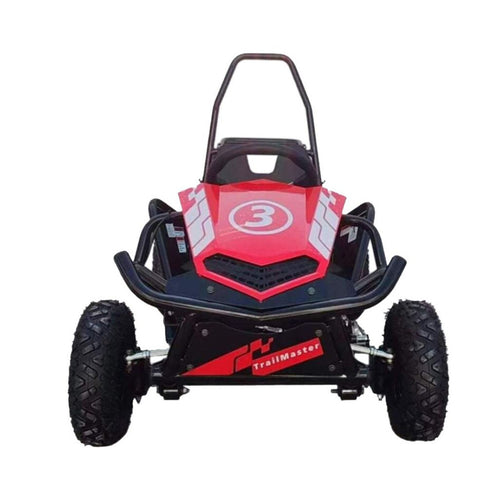

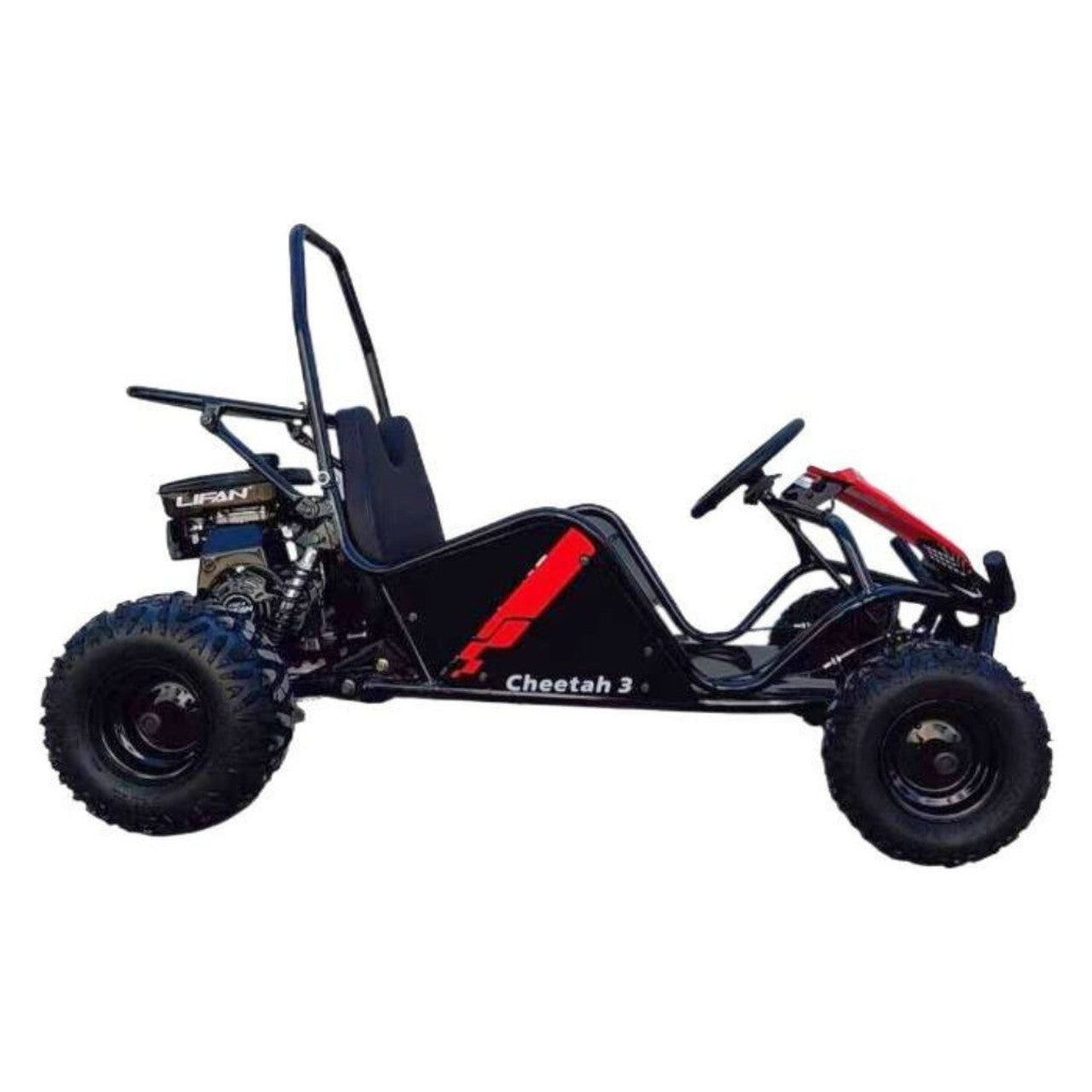

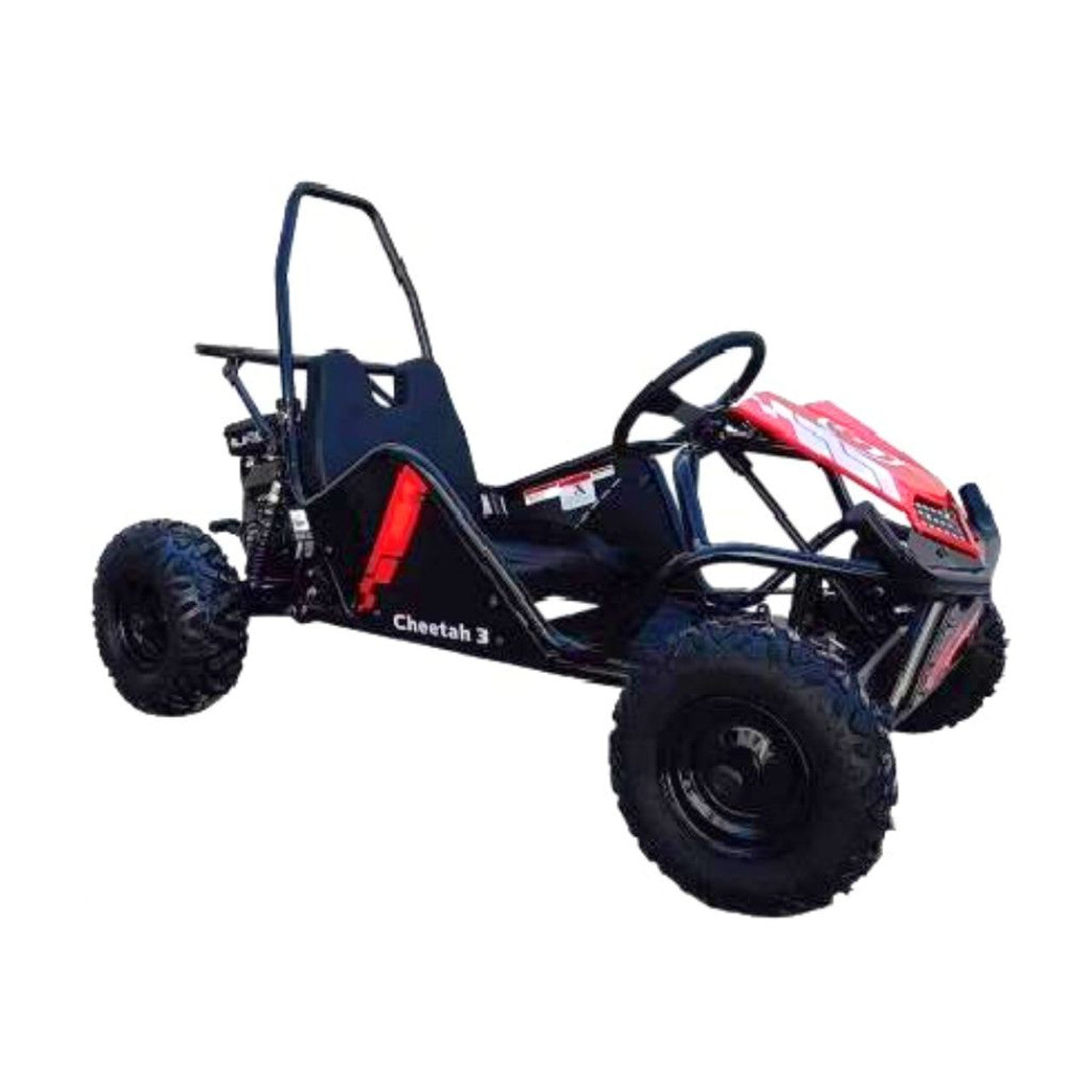

The TrailMaster Cheetah 3 is our smallest mini size Cheetah go-kart. It is an economy model with all the fun in a basic design. It targets the 6 to 10 year old range of kiddies for lots of fun!  This new kid’s size Go kart includes the following main features: Sporty stylish design with an automatic CVT & Lifan 2.5 HP horizontal OHV engine with a manual choke. It has an adjustable seat with an adjustable pedal to seat back from 28” to 32”. The age group is 6-10 yrs, and can fit a person up to 5’2”. It comes standard with a rear rack and has (only) rear suspension for a comfortable ride. It has a lap safety seat belt and the Max speed is 21 m/h with a governor for safety.

TrailMaster Cheetah 3 Go Kart Specifications:

Engine Information

  • EPA certificated
  • Engine type: 4-stroke, single cylinder, air cooled, Horizontal JF152 OHV Engine
  • Displacement: 80cc, 2.5HP
  • Max HP: 1.1KW/3600RPM
  • Max torque: 3.1NM/3000RPM
  • Bore x stroke: 2.05x1.47inches
  • Max speed: 21 mph
  • Climbing ability: 12 degrees
  • Starting system: Pull Start
  • Carburetor brand: P19
  • Engine oil: SAE 10W-40

General Information

  • Clutch: Automatic CVT
  • Driveline / Driving wheel: Chain / Dual wheel drive
  • Suspension F / R: N/A/ swing-arm
  • Brake: Rear mechanical disc
  • Tires, F / R: 4.10-6/145/70-6
  • Wheel: Steel
  • Fuel capacity: 0.35 gal
  • Weight, G.W. / N.W.: 176 / 143 lbs
  • Max load: 180 lbs

Dimension Information

  • Wheelbase: 43.7 inches
  • OA L x W x H: 58.3x31.5x59 inches
  • Height to seat: 10.2 inches
  • Min ground clearance: 3.5 inches
  • Pedal to seat back distance: 28” to 32”
  • Packing size: 60X32X21 inches
