description
|

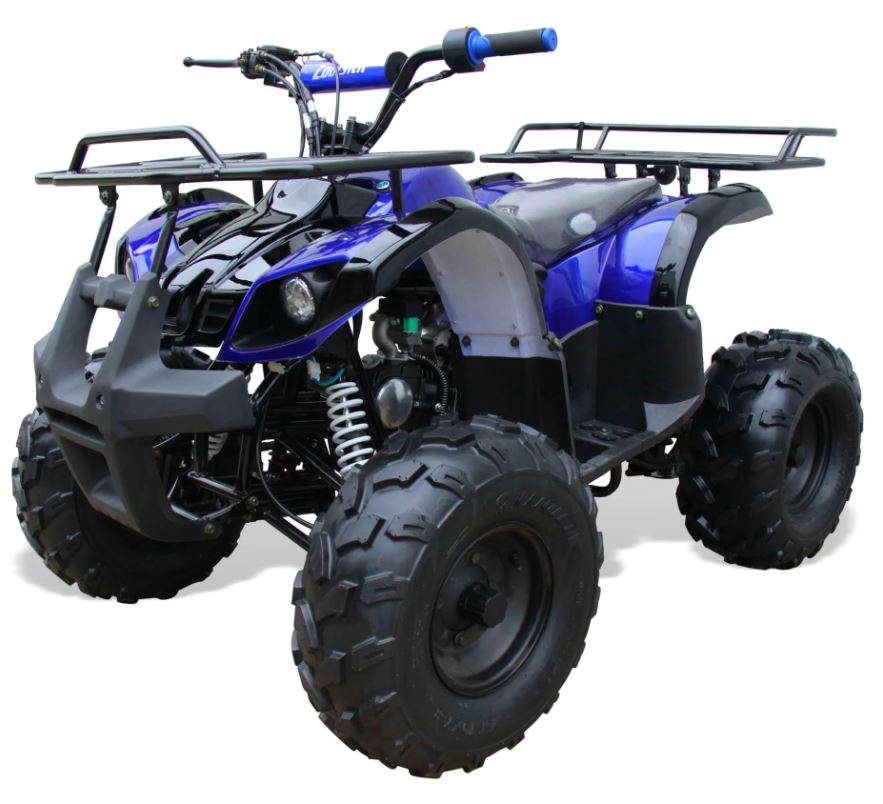

MODEL NO. |
3125R'' Tire 125cc |
|
CONFIGURE. |
|
|

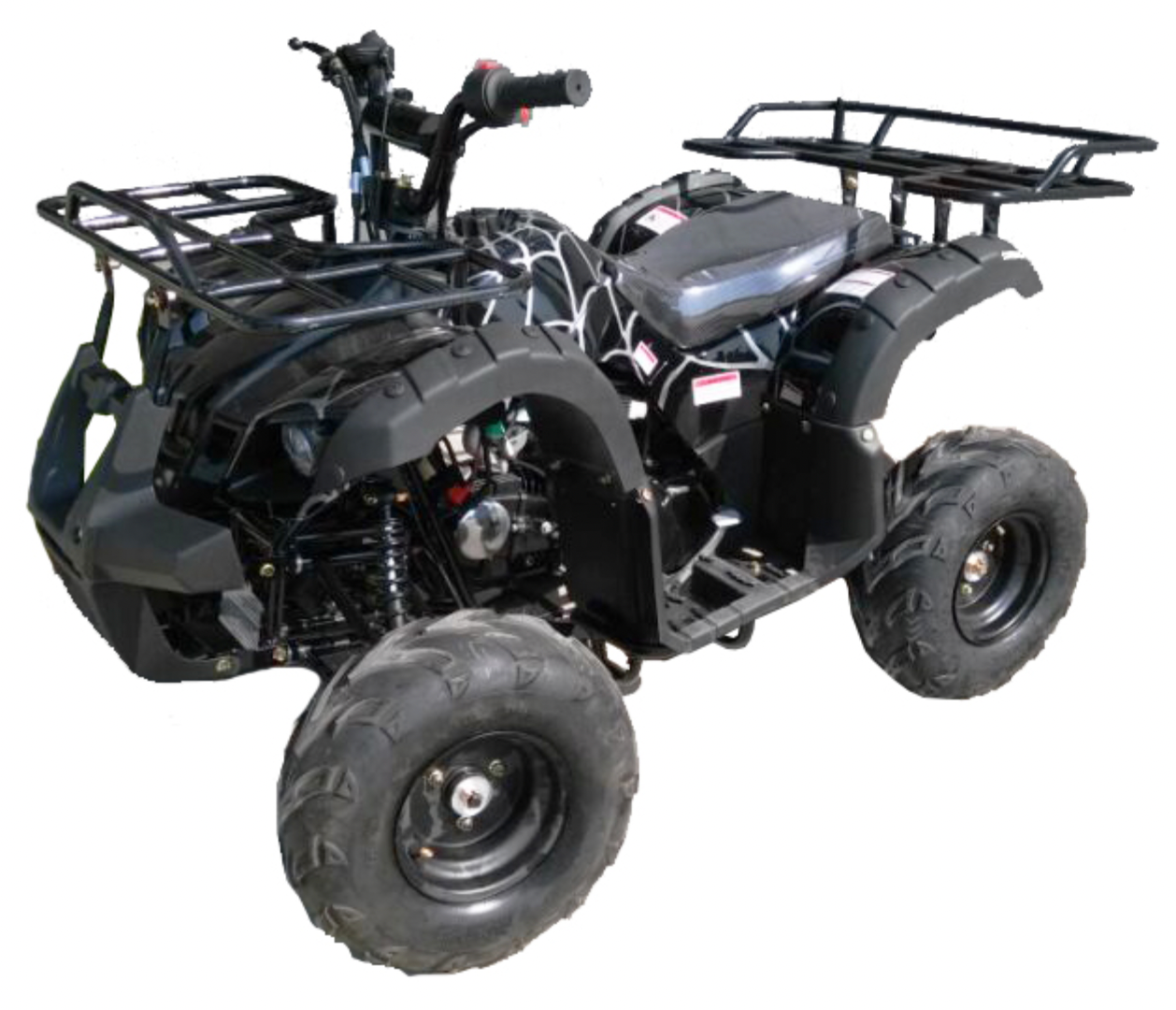

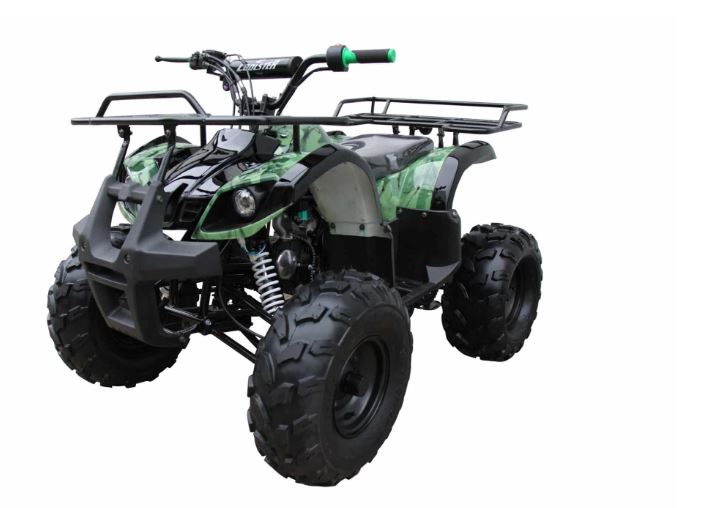

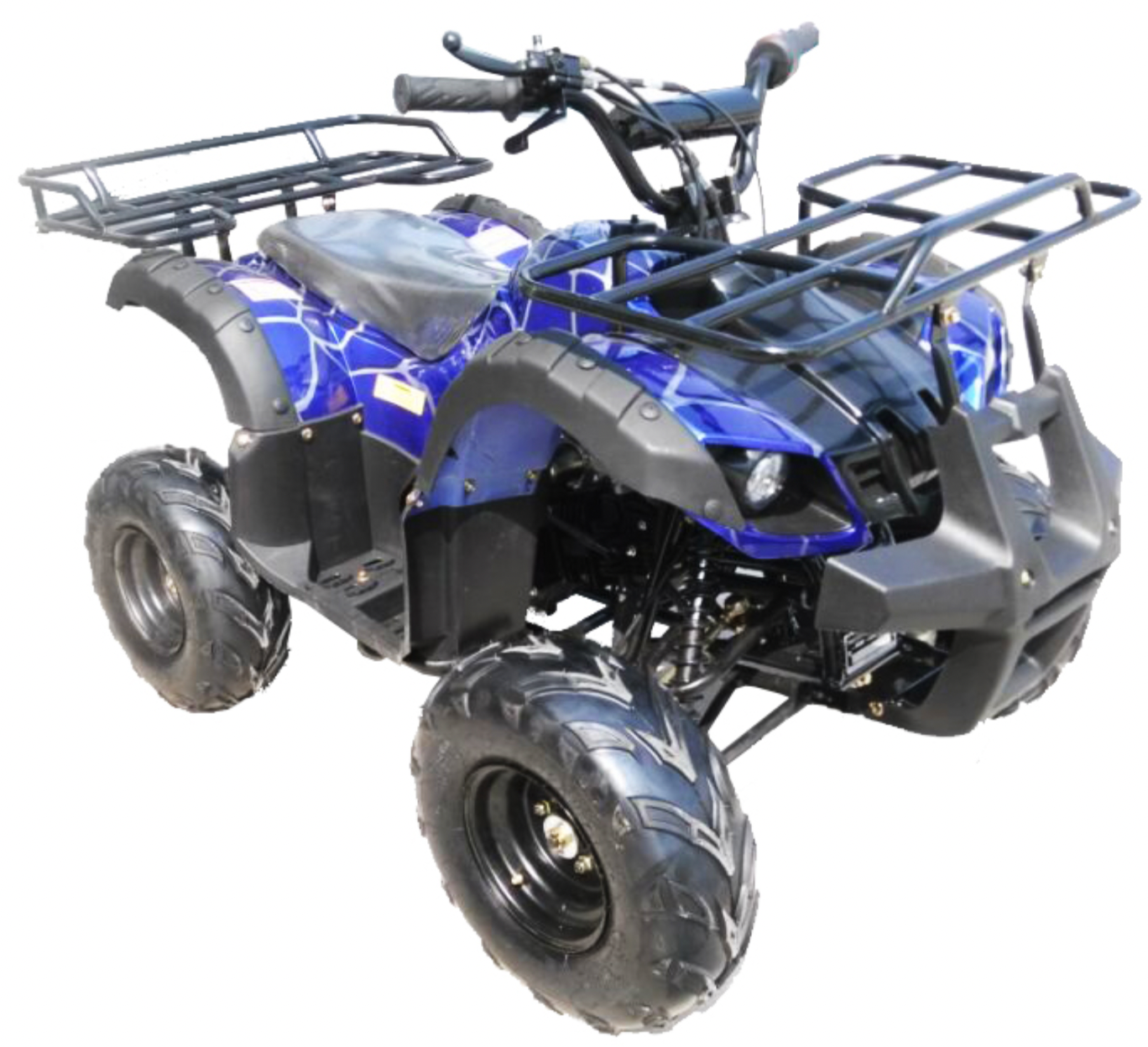

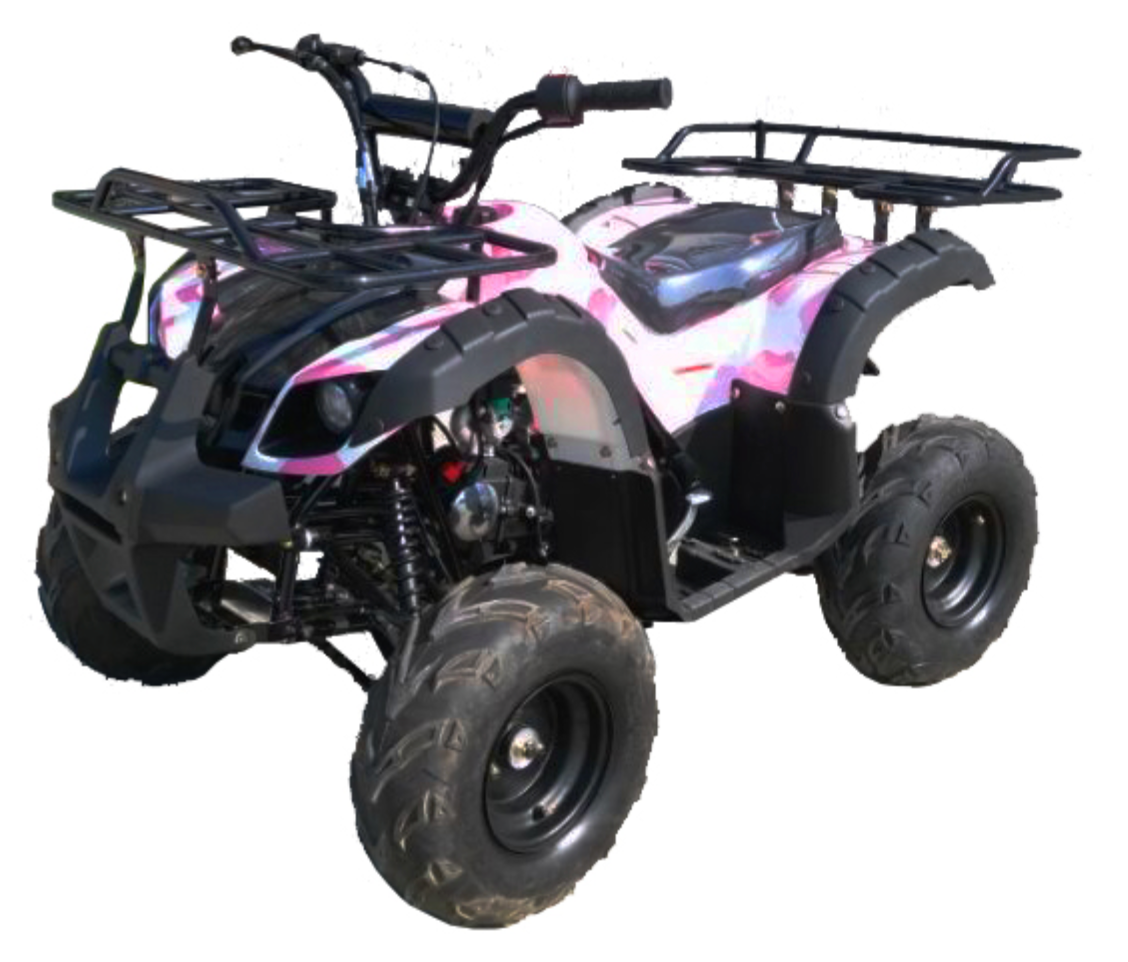

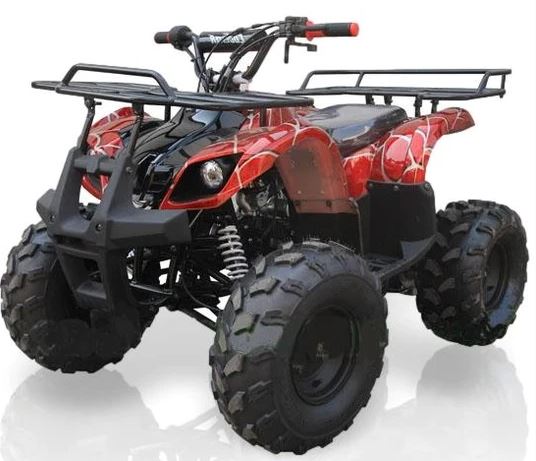

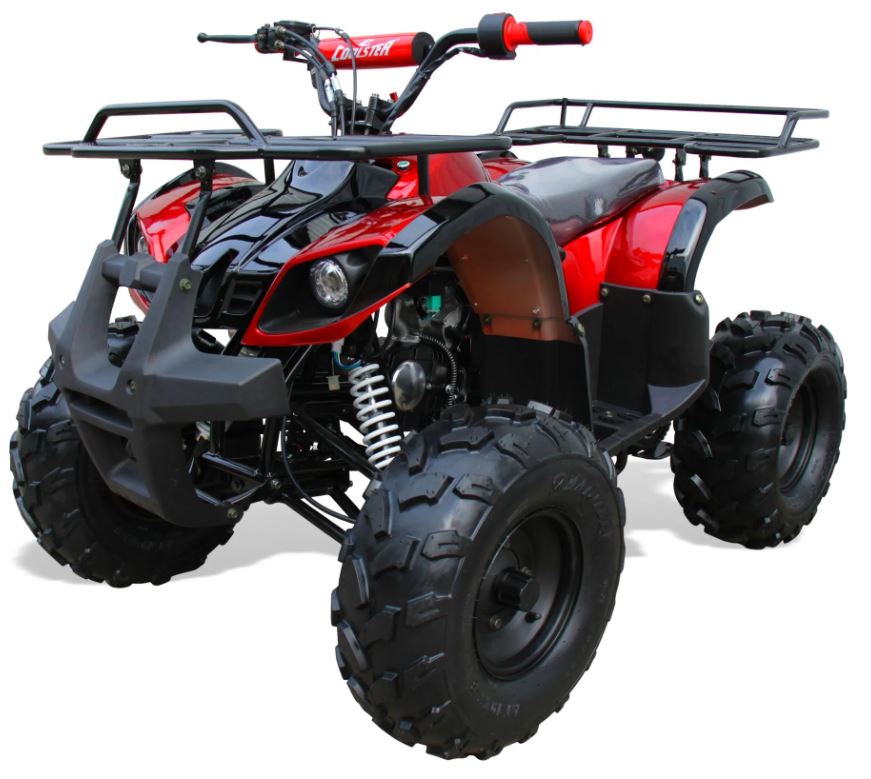

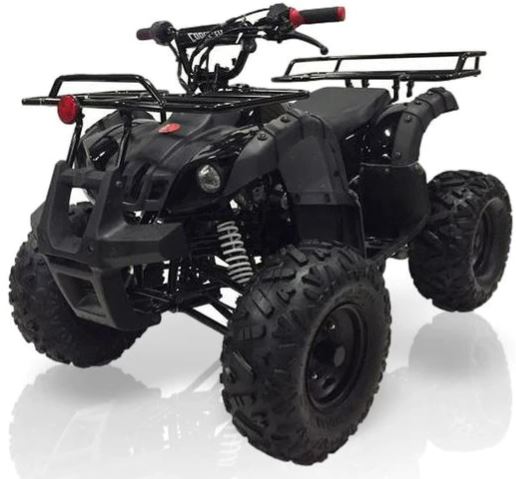

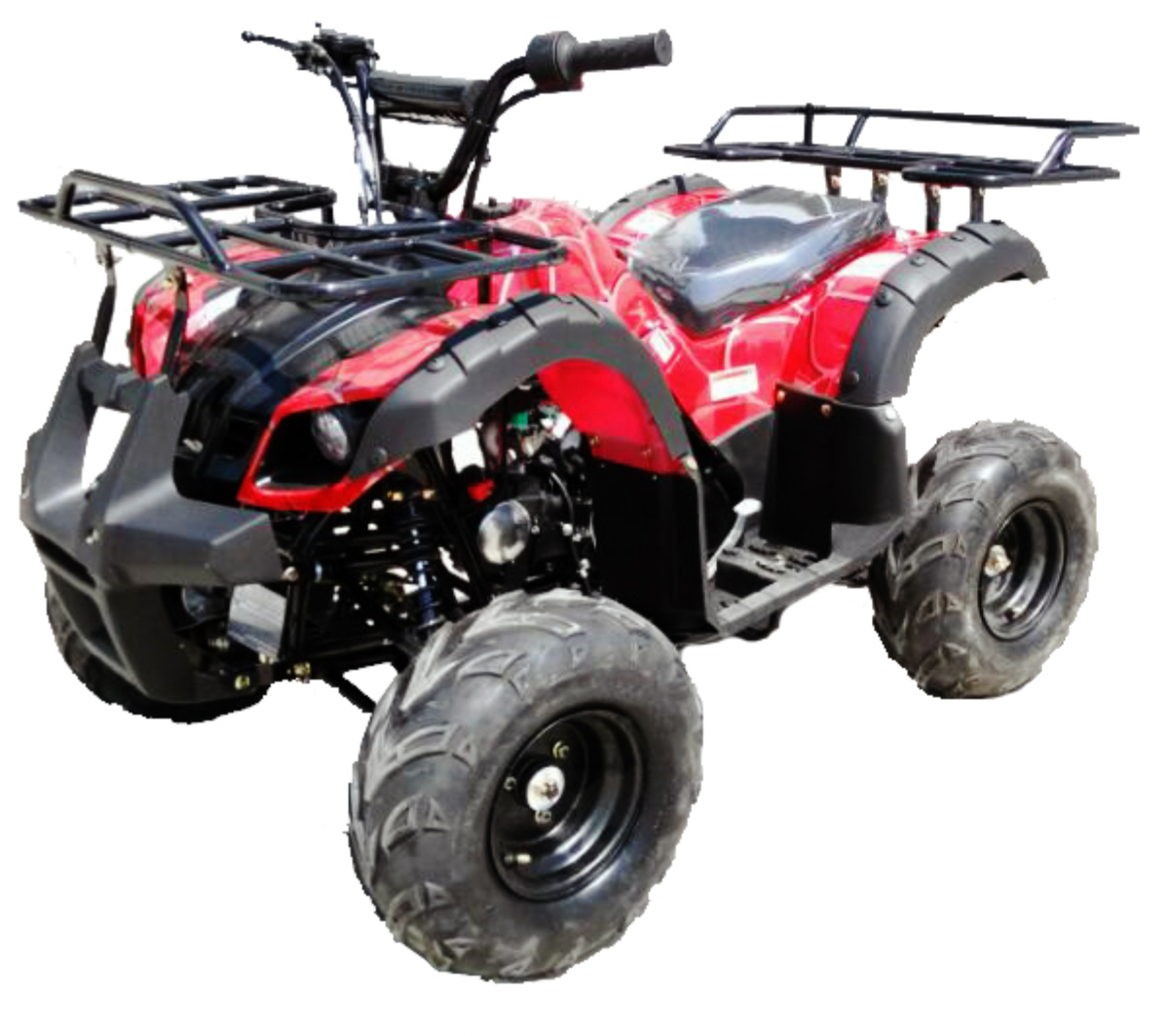

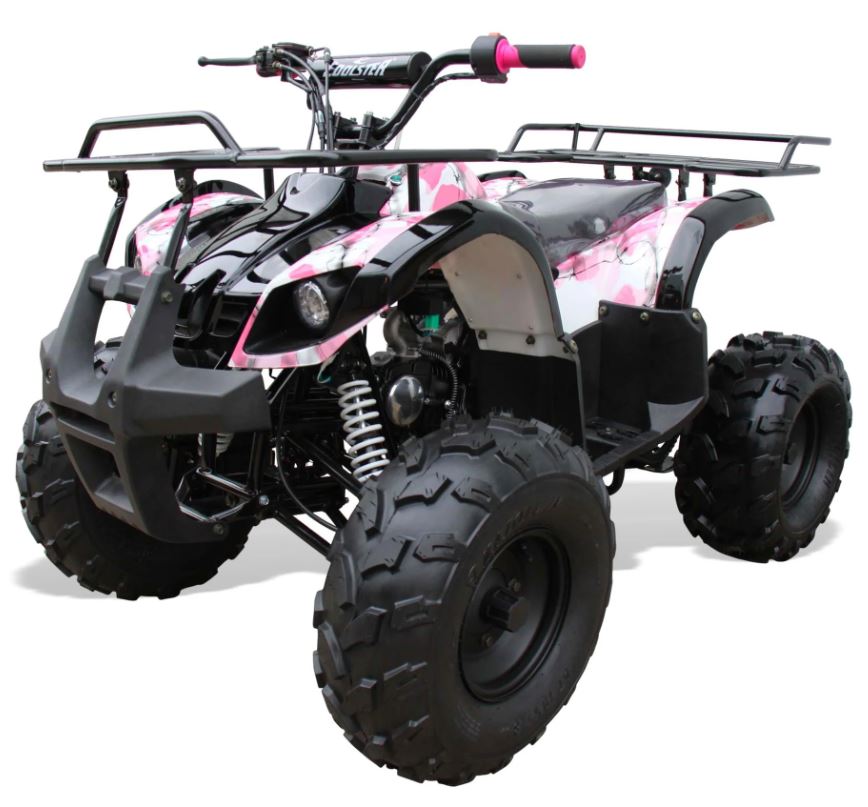

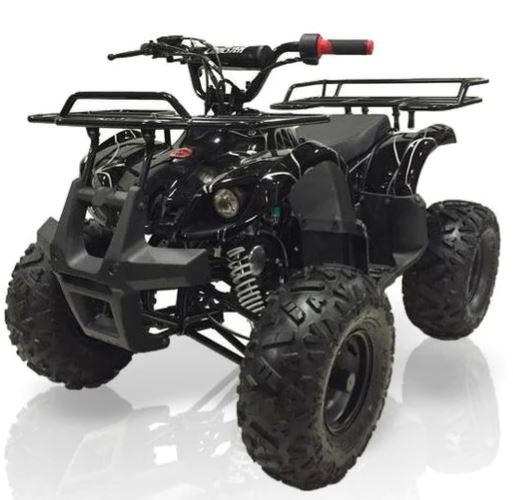

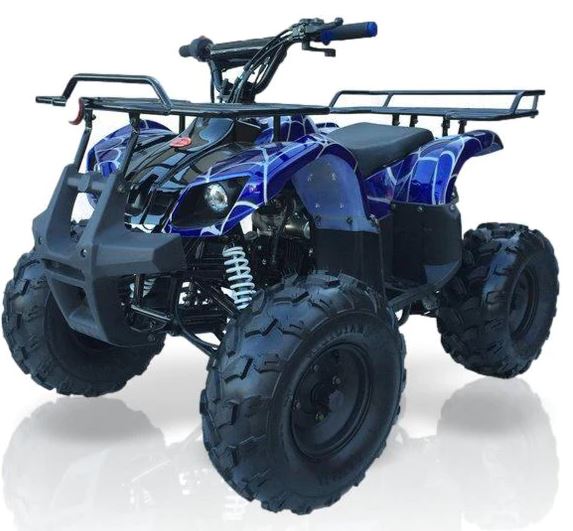

Colors available |
PINKCAMO, ARMY GREENCAMO, BLUE, RED, BLACK |
|
Decals |
N |
|
Tool kit |
Y |
|
Remote start |
Y |
|
Remote engine stop |
Y |
|
Remote alarm |
Y |
|
Speed limiter |
Y |
|
Assembly required |
* |
|
ENGINE INFO. |
|
|
Engine type |
Four Stroke ,single cylinder, |
|
Engine brand |
Tianzong |
|
Displacement |
110 cc, 125 cc |
|
Cooling |
Air cooled |
|
Max horsepower |
5.2kW/8000(r/min)； |
|
Max torque |
7.0N.m/5000(r/min) |
|
Bore*stroke |
52.4×49.5 mm |
|
Max speed |
55km/h |
|
Climbing ability |
≥11° |
|
Ignition |
C.D.I |
|
Starting system |
Electric start |
|
Battery |
12V 4AH |
|
Carburetor brand |
Pz19 |
|
Engine oil |
15W/40-SE |
|
Gear oil |
* |
|
CHASSIS ETC. |
|
|
Clutch |
automatic |
|
Transmission |
1-forward,1-neutral,1-reverse |
|
Driveline |
Chain drive |
|
Driving wheel |
* |
|
Suspension,front/rear |
FR：DOUBLE / RR：SINGLE |
|
Brakes,front/rear |
FR:DRUM RR:DISC |
|
Brake operation |
HAND+foot |
|
Tires; Front/Rear |
16 x 8.0-7 / 16 x 8.0-7 |
|
Fuel capacity/type |
2.3L |
|
Weight,G.W./N.W. |
* |
|
Max load |
90kg |
|
DIMENSIONS |
|
|
Wheelbase |
890 mm |
|
OA L*W*H |
1340×850×950 mm |
|
Height to seat |
680 |
|
Min ground clearance |
100mm |
|
Carton size |
1310×760×650mm |
