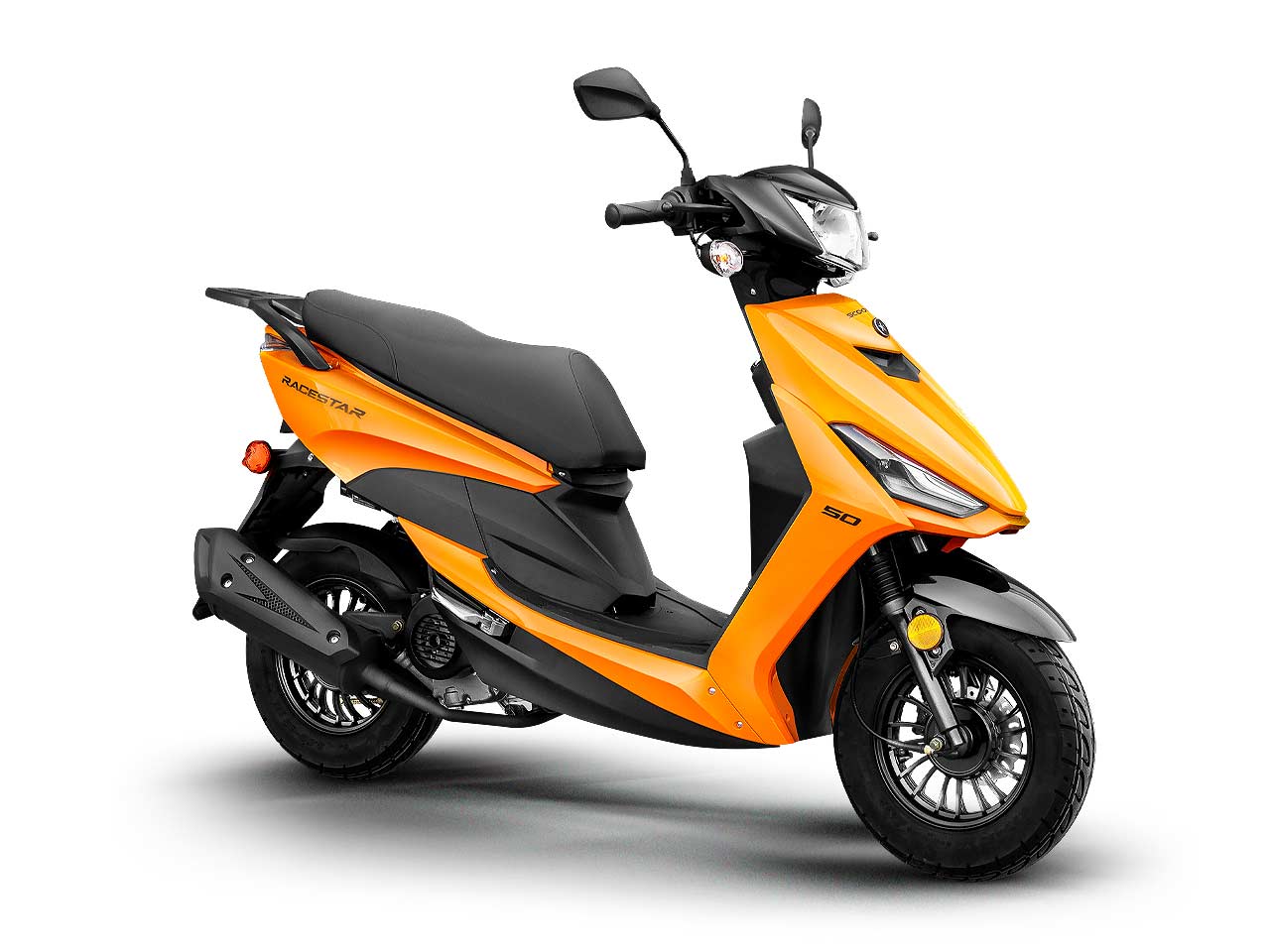

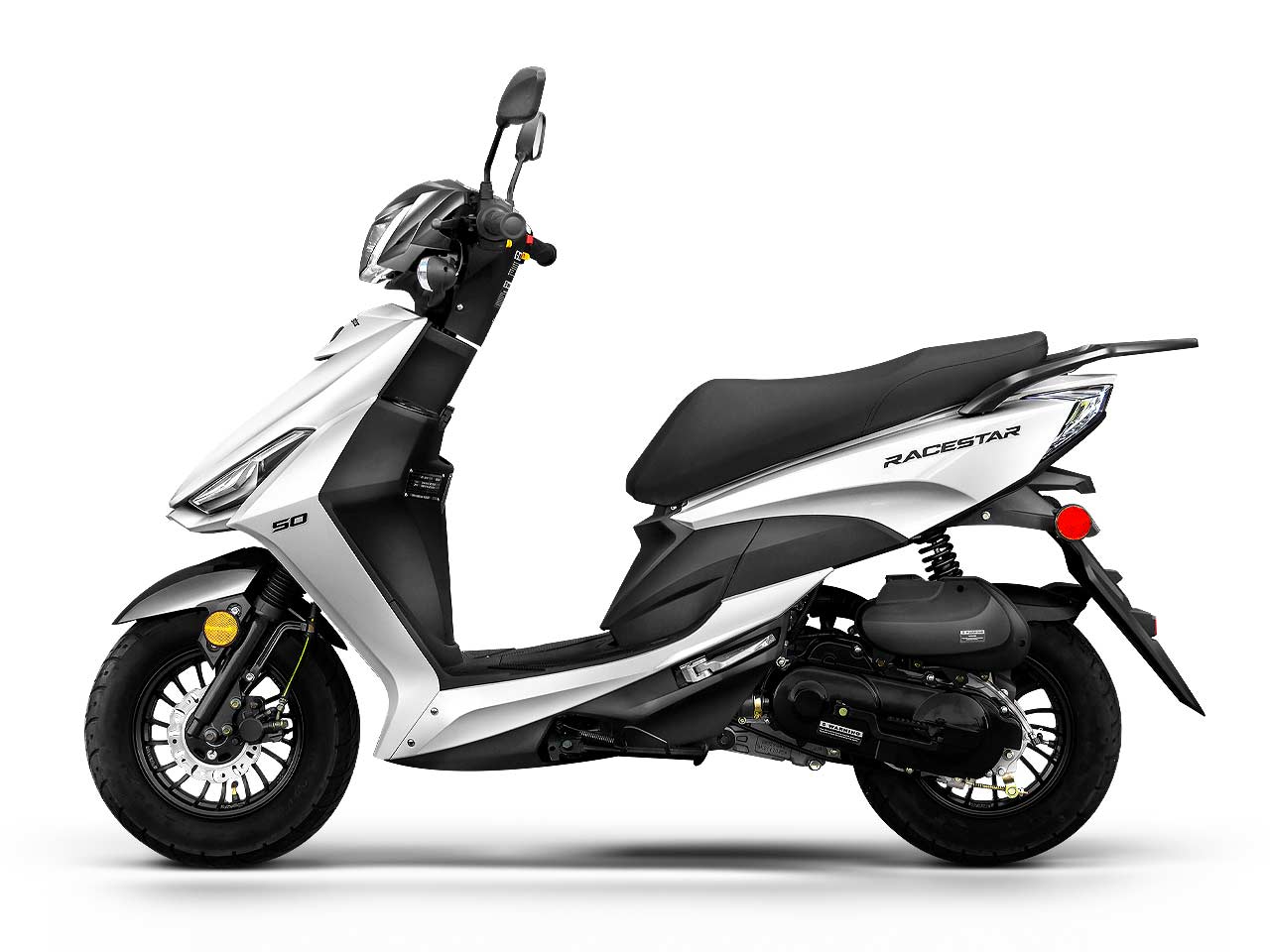

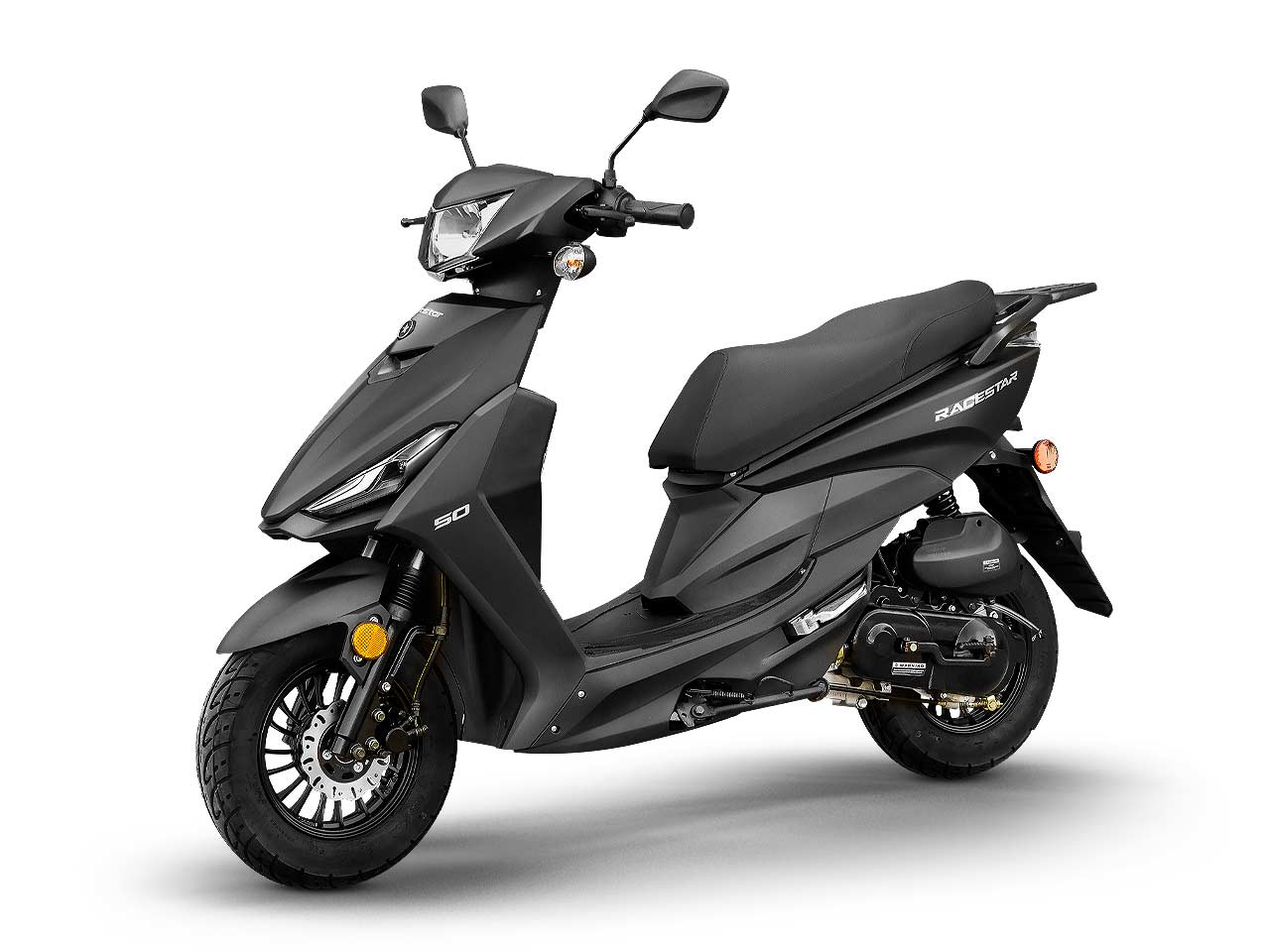

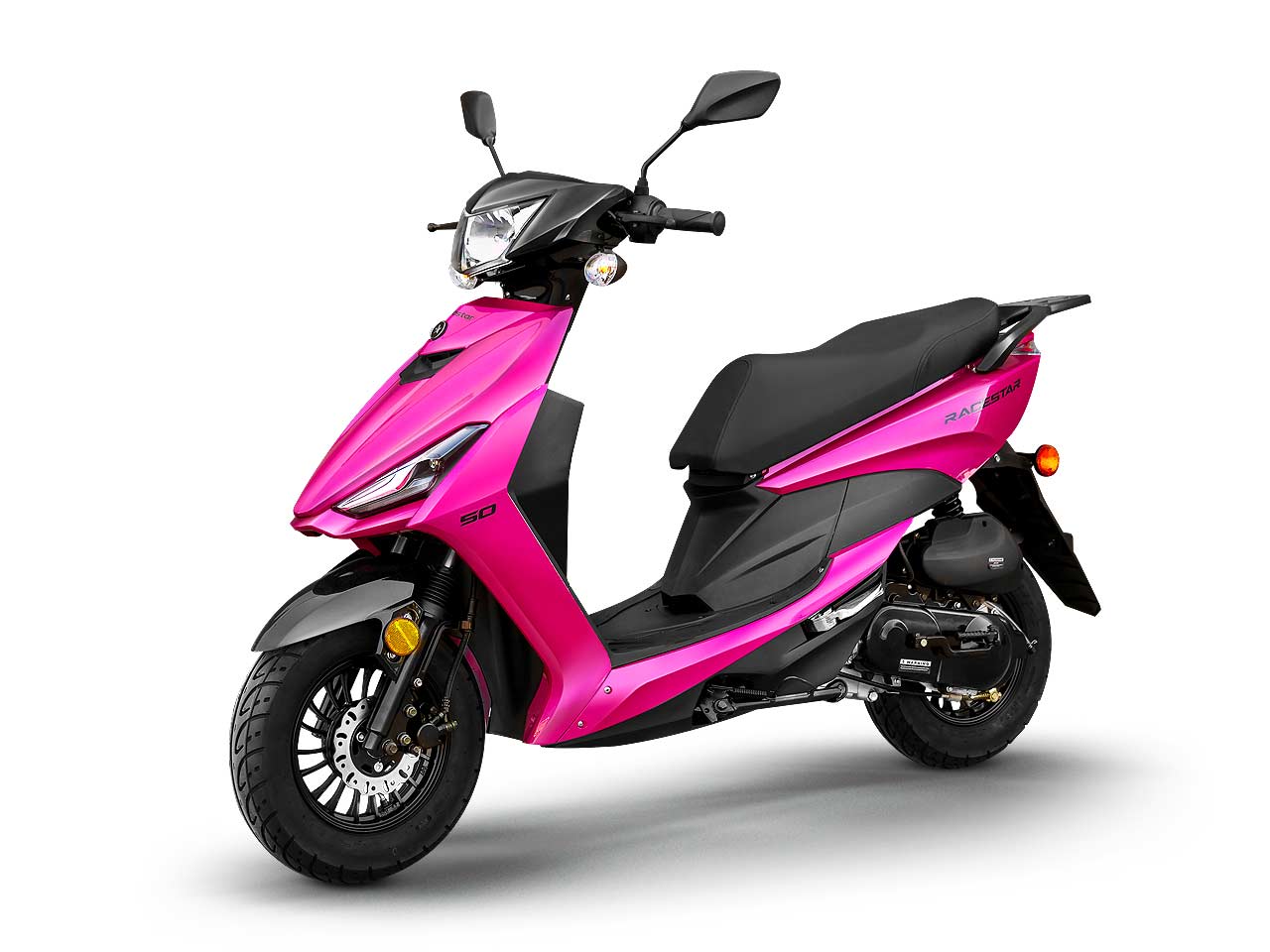

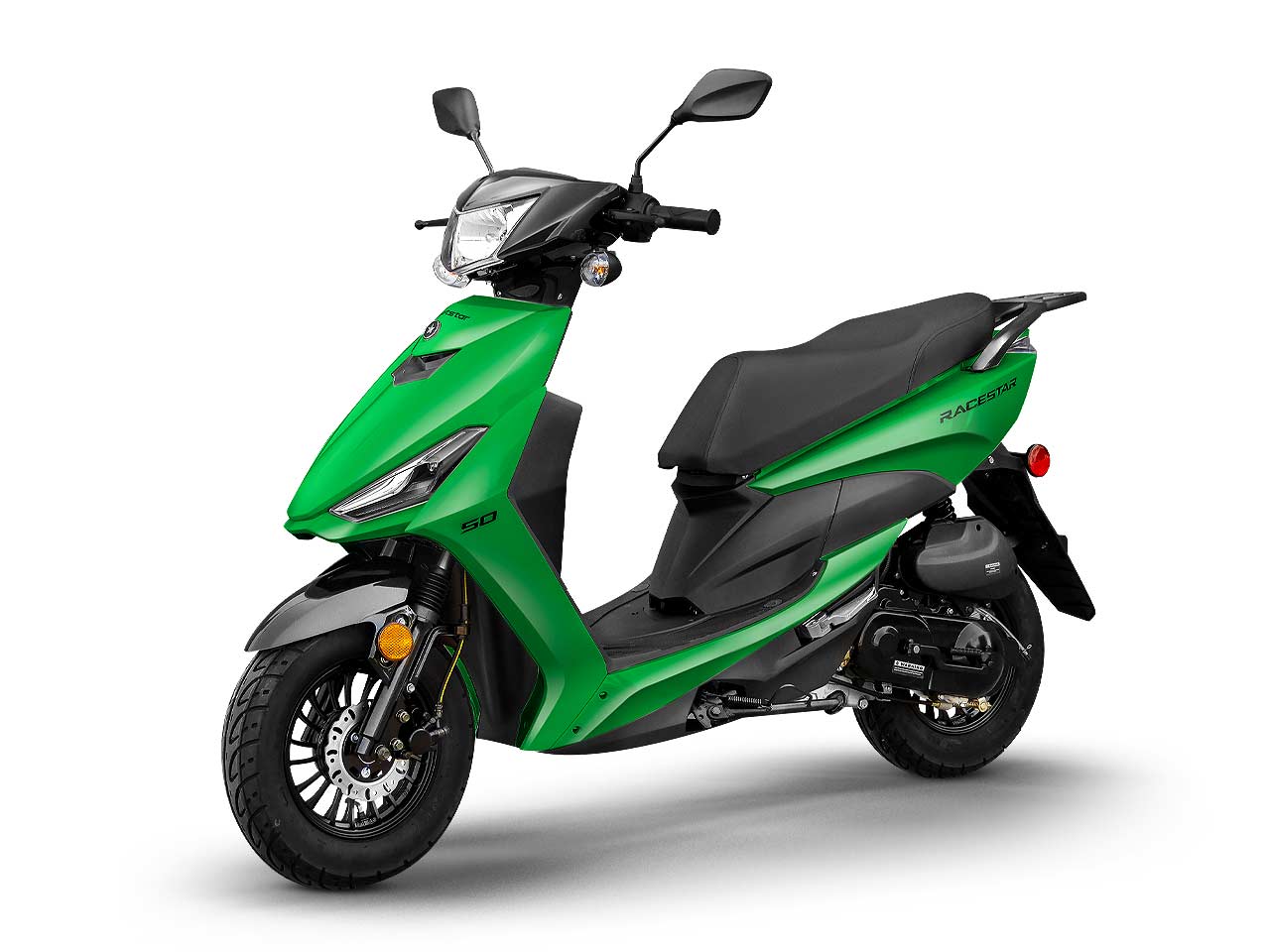

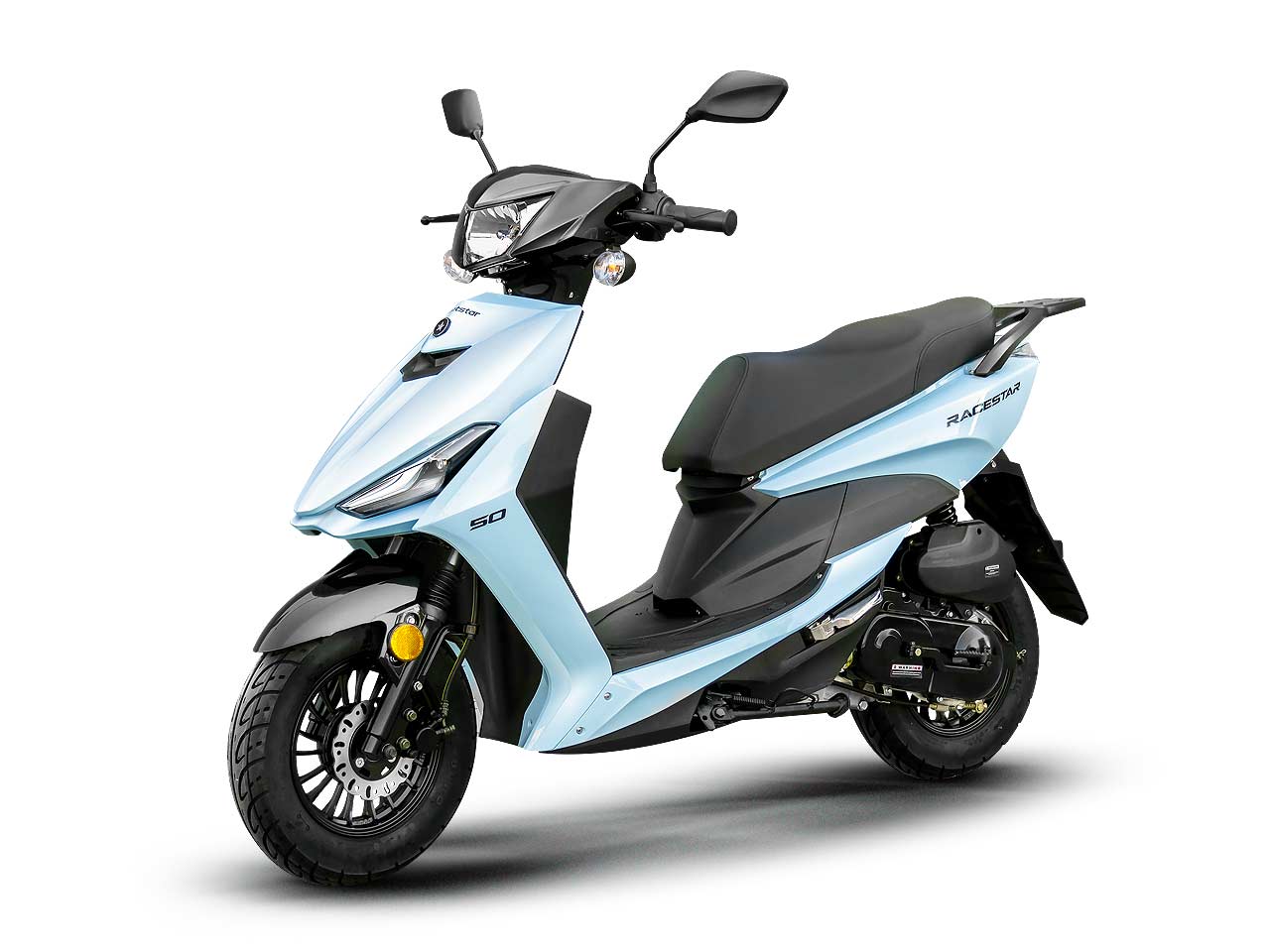

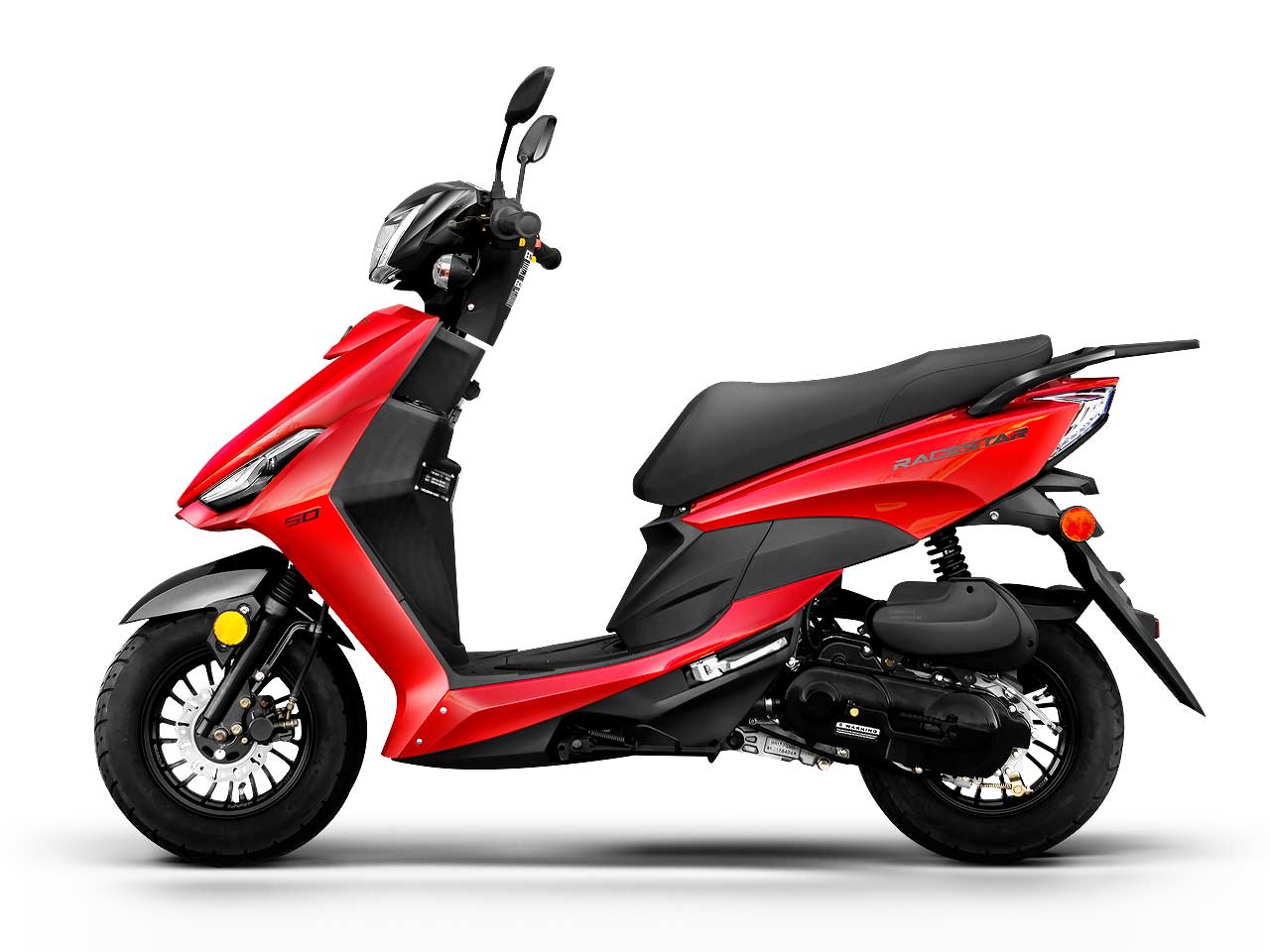

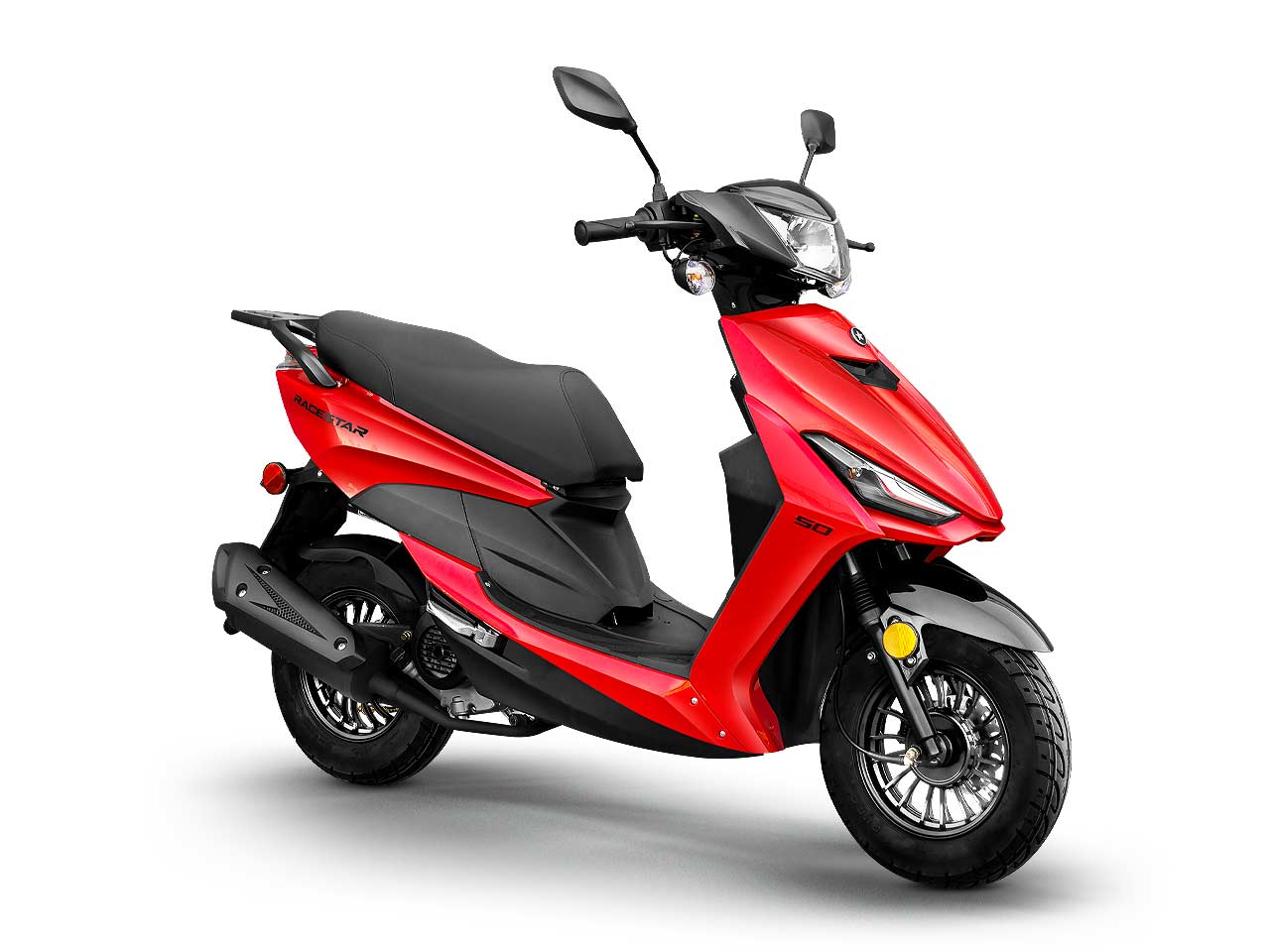

Rayo 150

description

ENGINE / DRIVE TRAIN:

MODELS RaceStar 50 RaceStar 150
Displacement: 49cc / Air cooled / 4 Stroke Single Cylinder 147.5cc / Air cooled / 4 Stroke Single Cylinder
Max Torque :  - 5.31 lb/ft - 7500 RPM
Compression Ratio: 10:1
Cooling System: Air Cooled
Transmission: C.V.T.
Clutch: Centrifugal Type
Drive: Belt
Starter: Electrical Starter / Kick
Engine Oil: 10W/40 or 15W/40
Carburetor Brand: Deni PD18J
Ignition: CDI
Spark Plug: NGK
Battery: YTX7A-BS / 12V/7A
Top Speed: 30 mph (Restricted)*

57 mph





CHASSIS / SUSPENSION / BRAKES:

Frame: High Strength Steel
Front Suspension: Telescopic Fork
Rear Suspension: Unit Swing
Front Brakes: Disc
Rear Brakes: Drum
Front Tires: 3.50 - 10
Rear Tires: 3.50 - 10
Front & Rear Rim: 2.15-10
Wheel: Aluminum



CAPACIITIES / DIMENSIONS:

Weight Capacity: 300+ Lbs 330.69 Lbs
Net Weight: 153.30 Lbs 260.14 Lbs
Fuel: Unleaded (90 octane or higher)
Fuel Capacity: 1.32 gallons
Ground Clearance: 3.74"
Dimension: L 66.9" x W 24.40" x H 40.55"
Seat Height: 29"
Wheelbase: 54.13"
Age Recommendation: 16+
