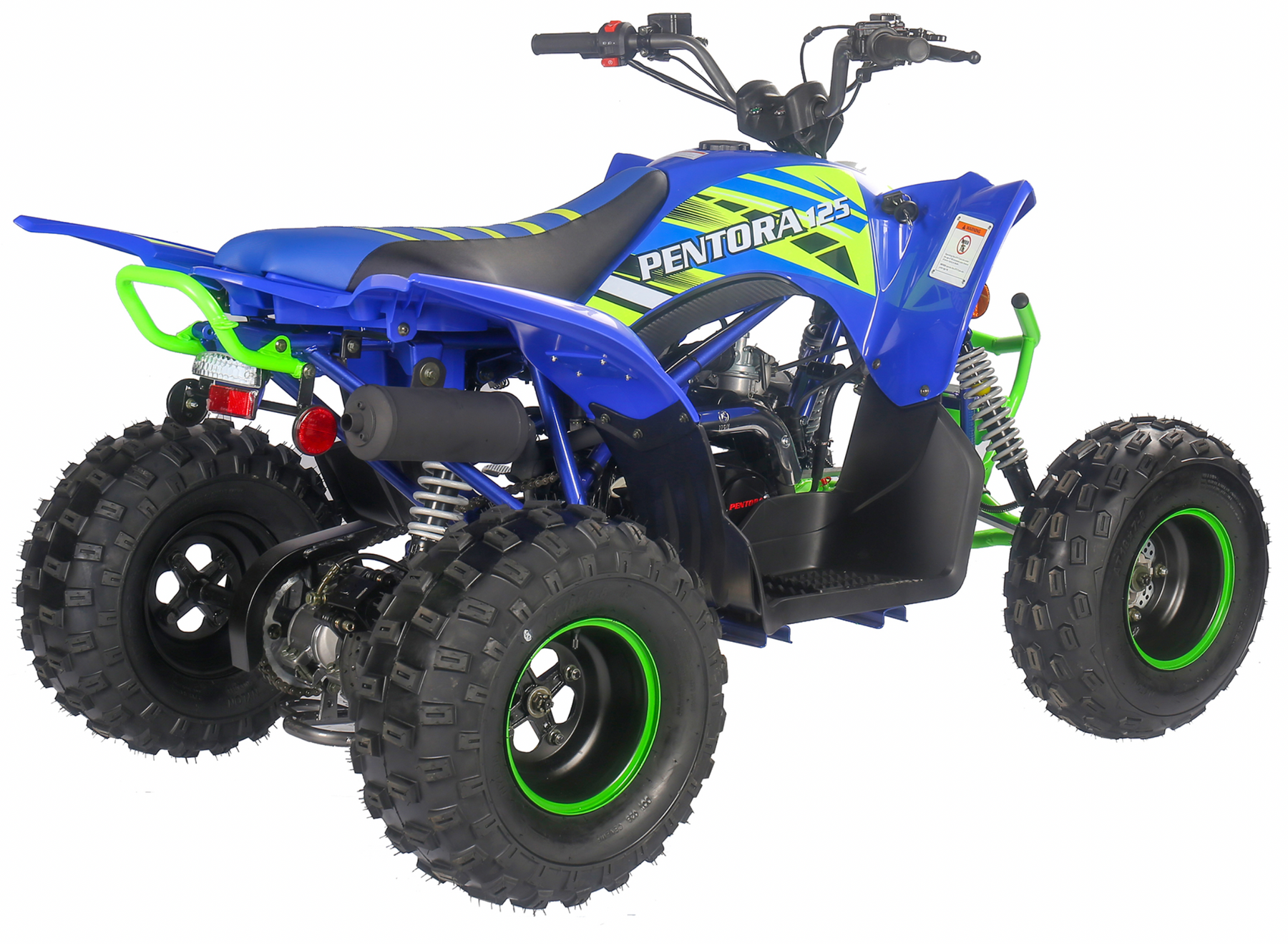

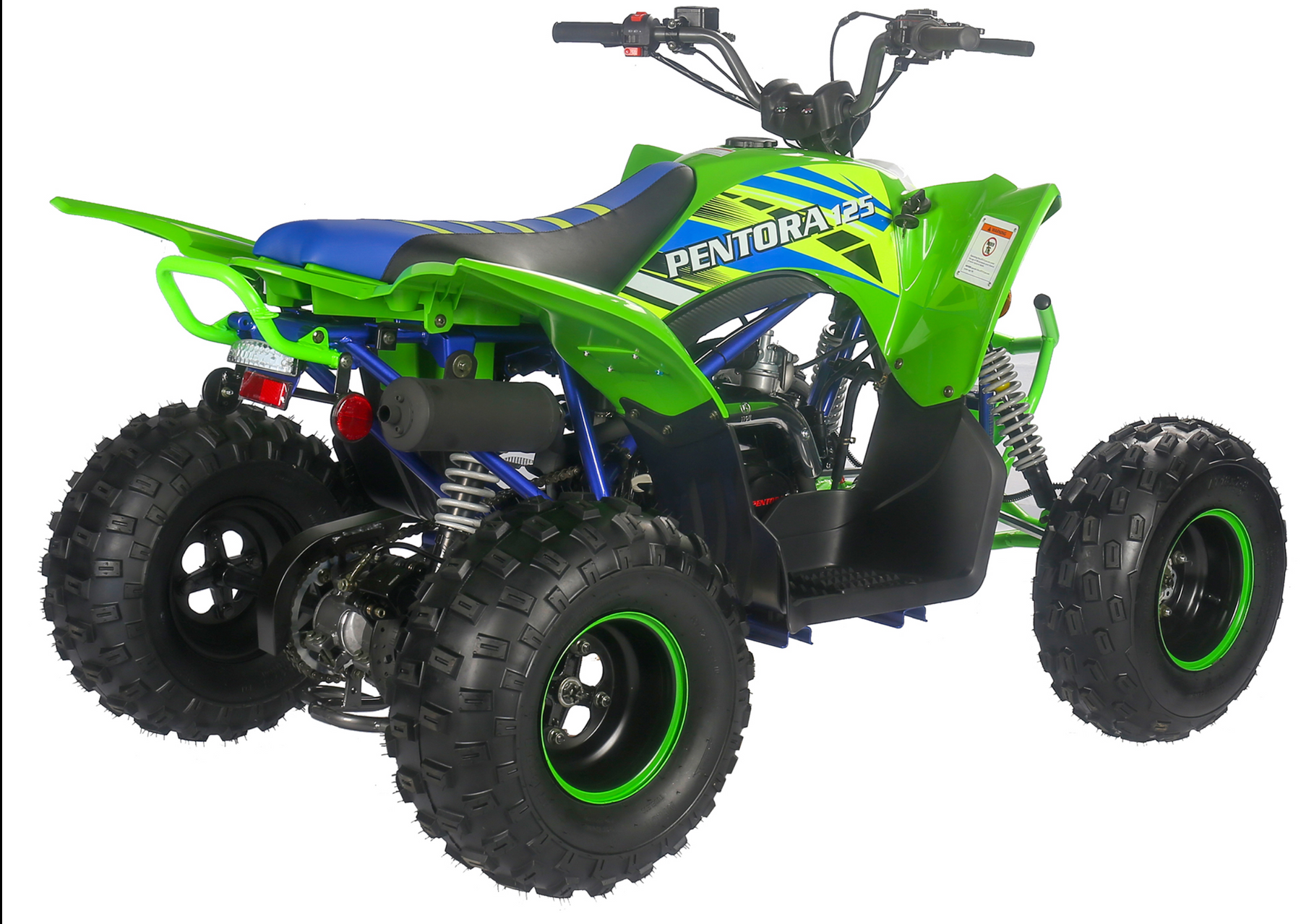

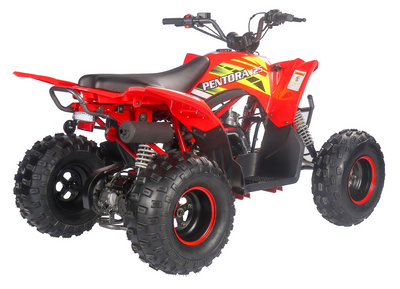

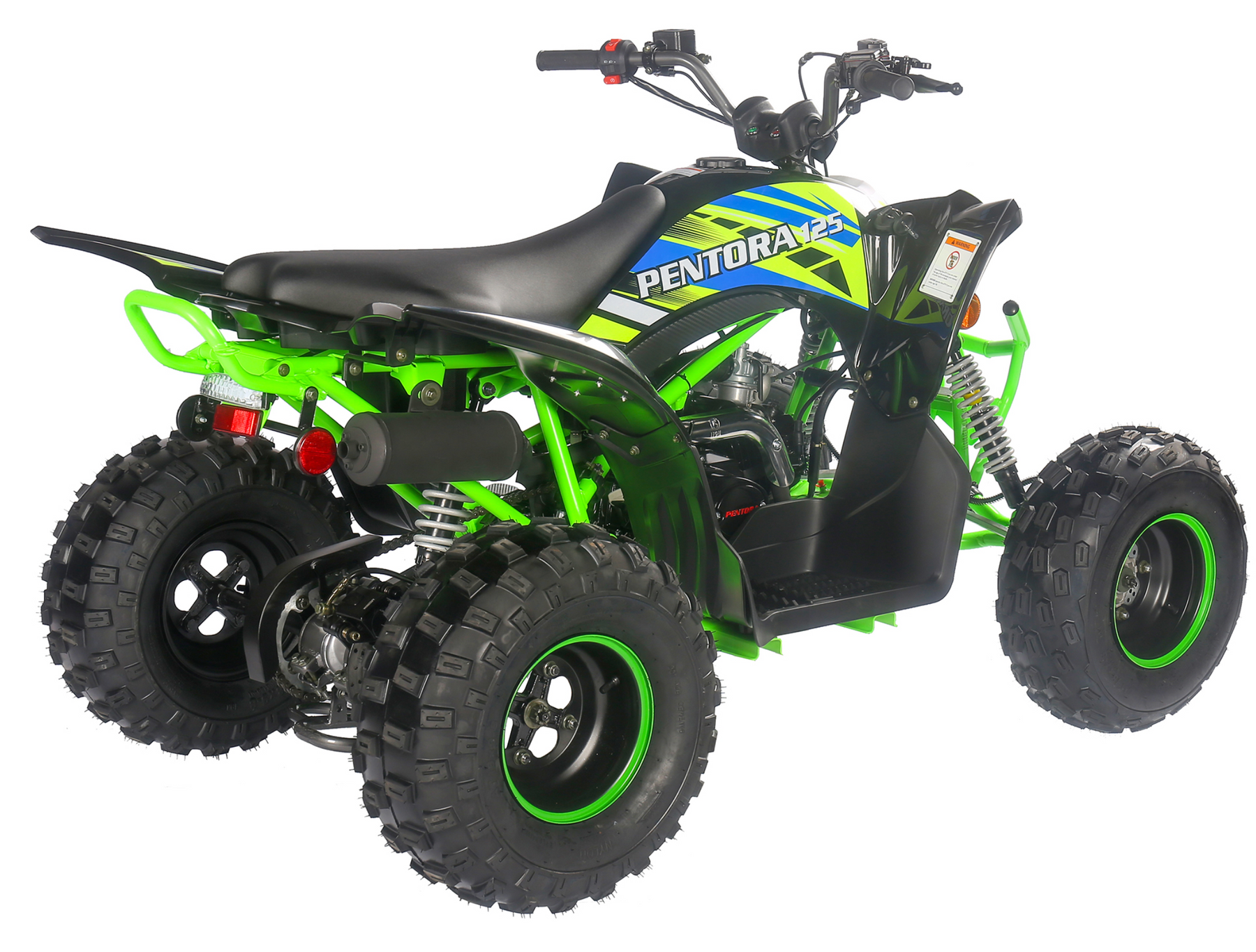

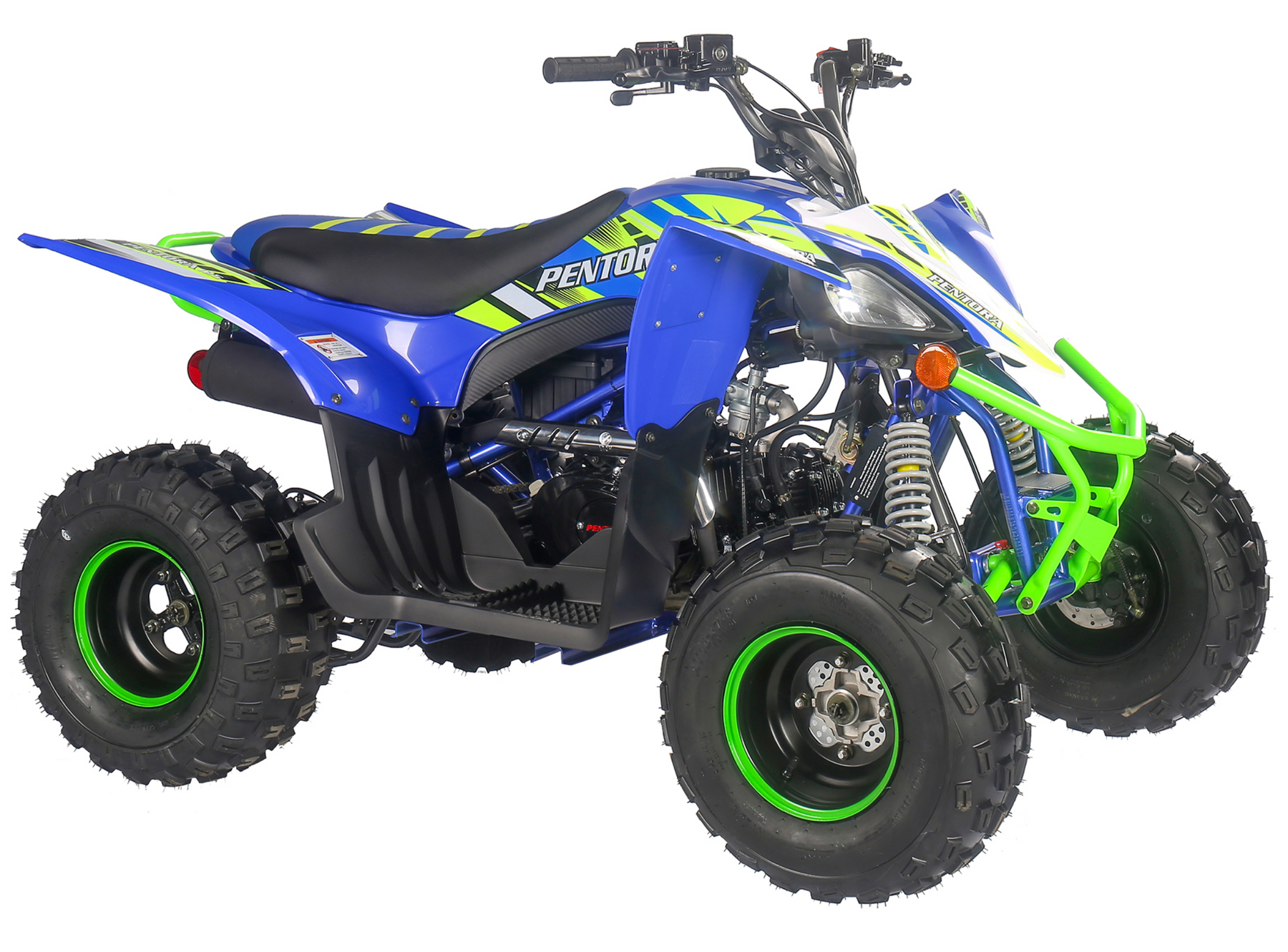

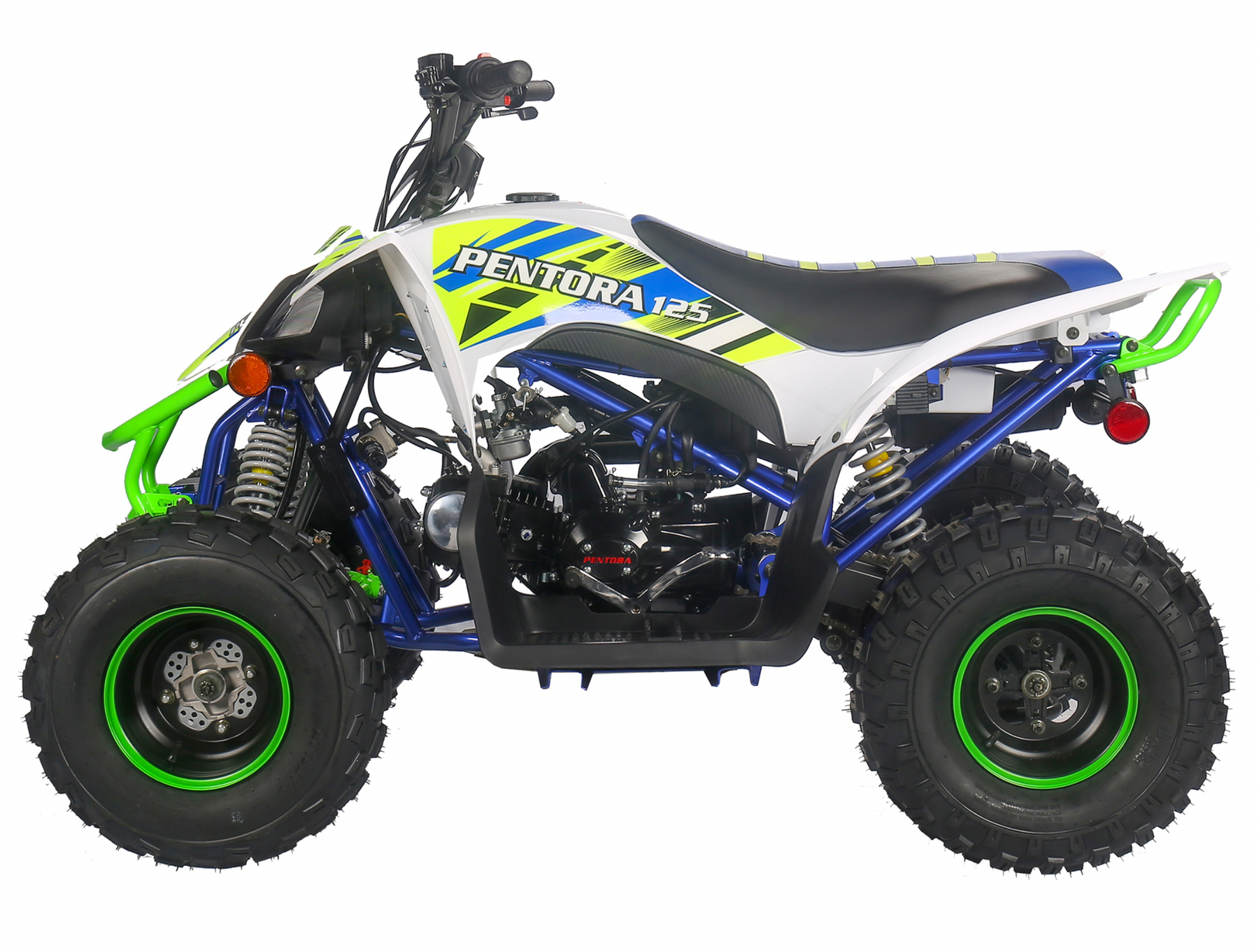

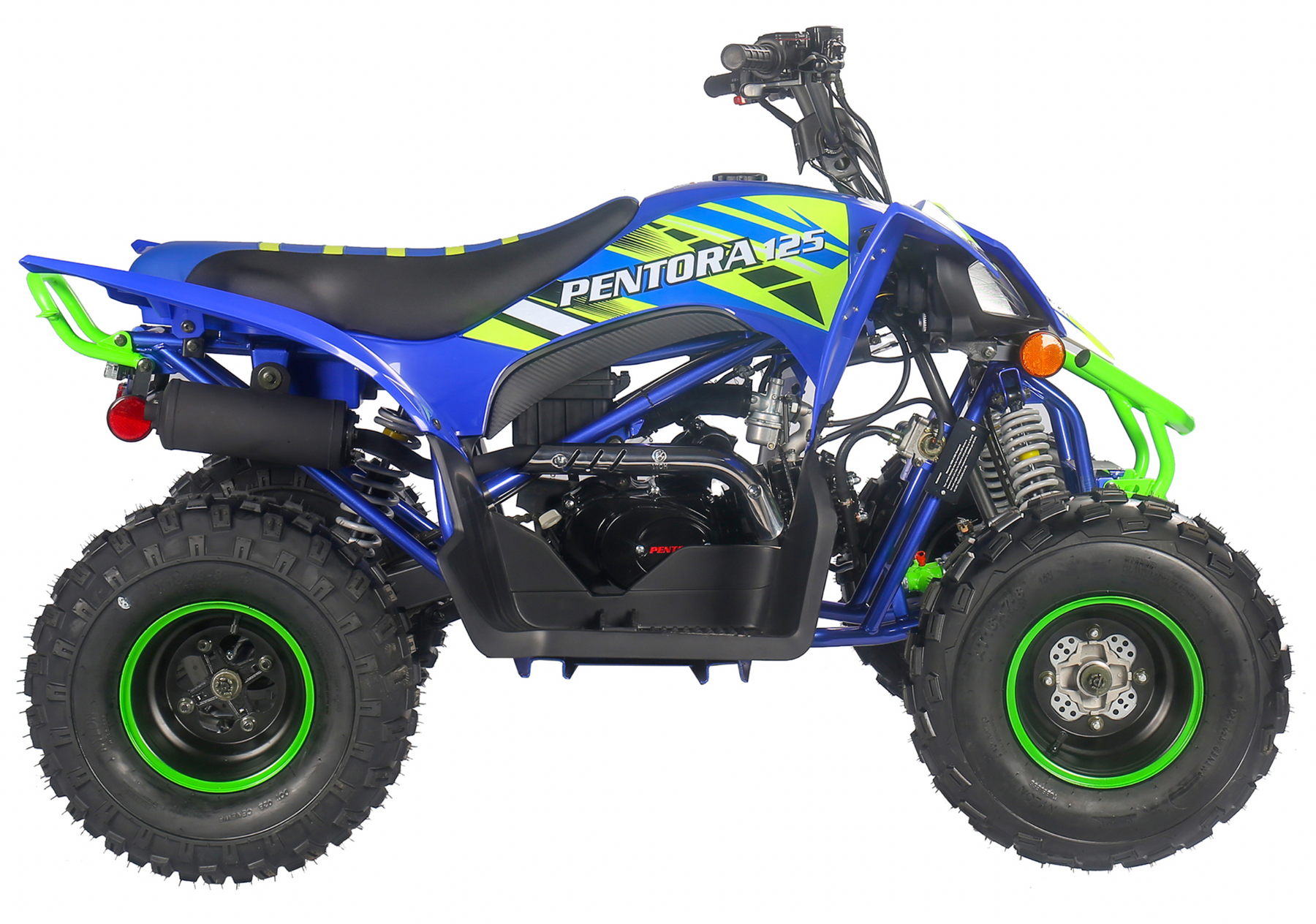

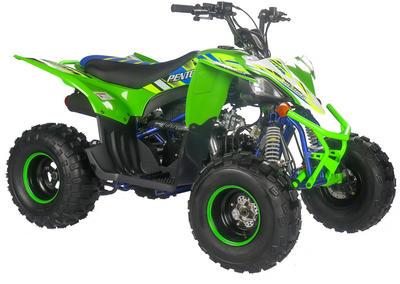

Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC
Pentora 125CC

Pentora 125CC


Assembly
Color
Regular price $2,199.00 Sale price$1,999.00
/
Shipping calculated at checkout.

NO.

SPEC

ITEMS

DETAIL

1.

ATV SPEC

L×W×H

61”X 39”X 42”

2.

WHEELBASE

40.5”±0.7”

3.

FRONT WHEELBASE

34”

4.

REAR WHEELBASE

30”

5.

MINIMUM GROUND CLEARANCE

4”± 0.5”

6.

SEAT HEIGHT

29”± 0.5”

7.

RIDE HEIGHT

8.6”

8.

HANDLE HEIGHT

39.7”

9.

PACKING SIZE

34”X 39”X 26”

10.

FR. SUSPENSION TRAVEL

2”

11.

RR. SUSPENSION TRAVEL

2.3”

12.

MINIMUM TURNING CIRCLE DIAMETER

149.6”

13.

TURNING ANGLE

<45°

14.

SIDESLIP

<5m/km

15.

MAX LOADING

180LBS

16.

NET WEIGHT

265LBS

17.

G. W.

316LBS

18.

F&R BRAKE

FR. & RE. DISC BRAKE

19.

F&R BRAKE OPERATION TYPE

FR. & RE. HAND BREAK

20.

FR./RR. RIM

8INCH

21.

FR./RR. TYRE

18*7-8/18*9-8

22.

FR./RR. TYRE CAPACITY

9 PSI

23.

FR./RR. TYRE

FR./RR. TYRE

24.

ENGINE SPEC

ENGINE TYPE

125CC, AIR COOLER. 4 STROKES

AUTOMATIC WITH REVERSE

25.

MODEL NO.

ZS154FMI

26.

MANUFACTORY

ZONGSHEN

27.

BRORE×STROKE

2.1”× 2.1”

28.

ENGINE CAPACITY

123.67ML

29.

COMPRESSION RATIO

9.0:1

30.

MAX.POWER

〔6.31±10%)〕/75001±5%)〕

31.

MAX.TORQUE

〔8.81±10%)〕/55001±5%)〕

32.

BATTERY

12V/5AH

33.

SPEC

TANK CAPACITY

6.5L

34.

FR./RR. SUSPENSION

OIL DAMPER

35.

FR./RR. SUSPENSIONLENGTH

11”/13.5”
