FUEL INJECTION

Lance’s perfect intelligence EFI Intelligent Injection System utilizes computer programs to calculate the oxygen content ratio in the air and control the fuel emission to achieve complete combustion, full power, rapid start-up, fuel efficiency, low pollution and acceleration enhancement. Particularly in respect of environmental protection, this system can help reduce pollution up to 30% and decrease fuel consumption by 15% without any catalyzer device.

The EFI System possesses warm compaction of induction, crank rotational speed, oxygen sensor cohering with the Environmental Protection Regulations, and engine temperature sensor. Collecting comprehensive conditions of the car and roads, it can proceed with precise calculation, and determine a perfect fuel injection volume, air-fuel ratio and ignition timing in order to achieve more powerful energy and less pollution emission, as well as to develop the best performance of the engine.



PERFORMANCE

Maximum horsepower is at 11.8hp with a top speedof 65+ mph.Acceleration is smooth and continuous with a steady flow of power that serves its purpose. It ’s the perfect for getting around town but also fast enough for smooth flowing traffic on urban roads.



STYLE

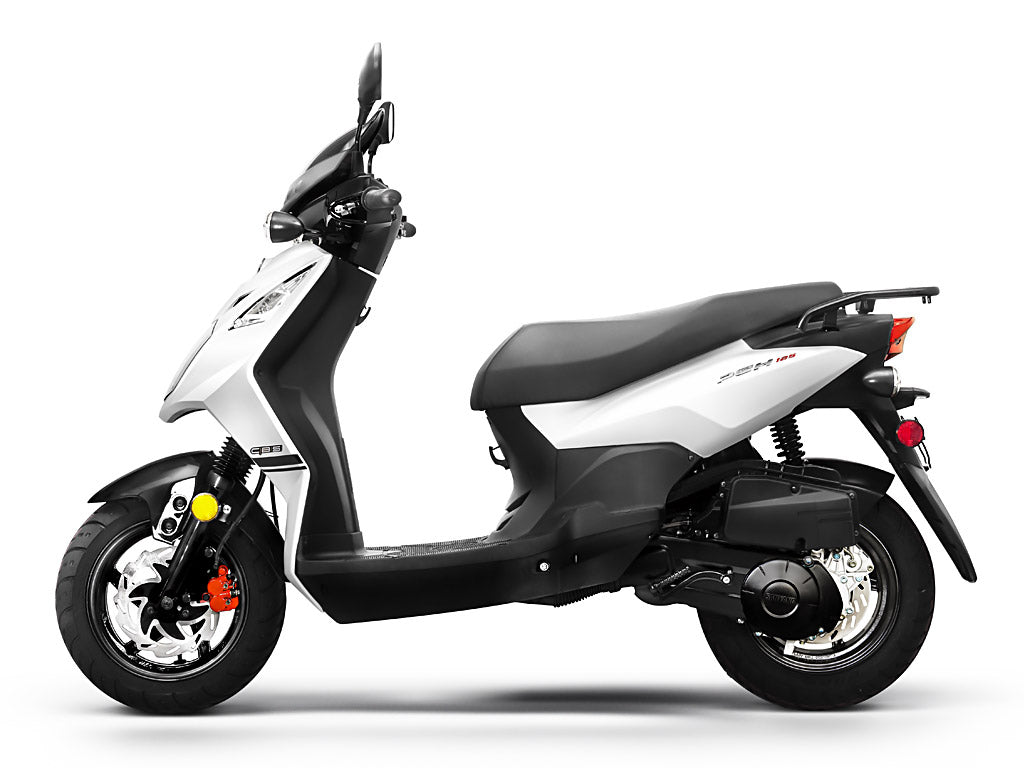

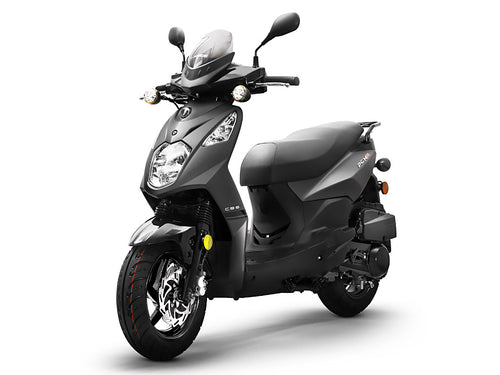

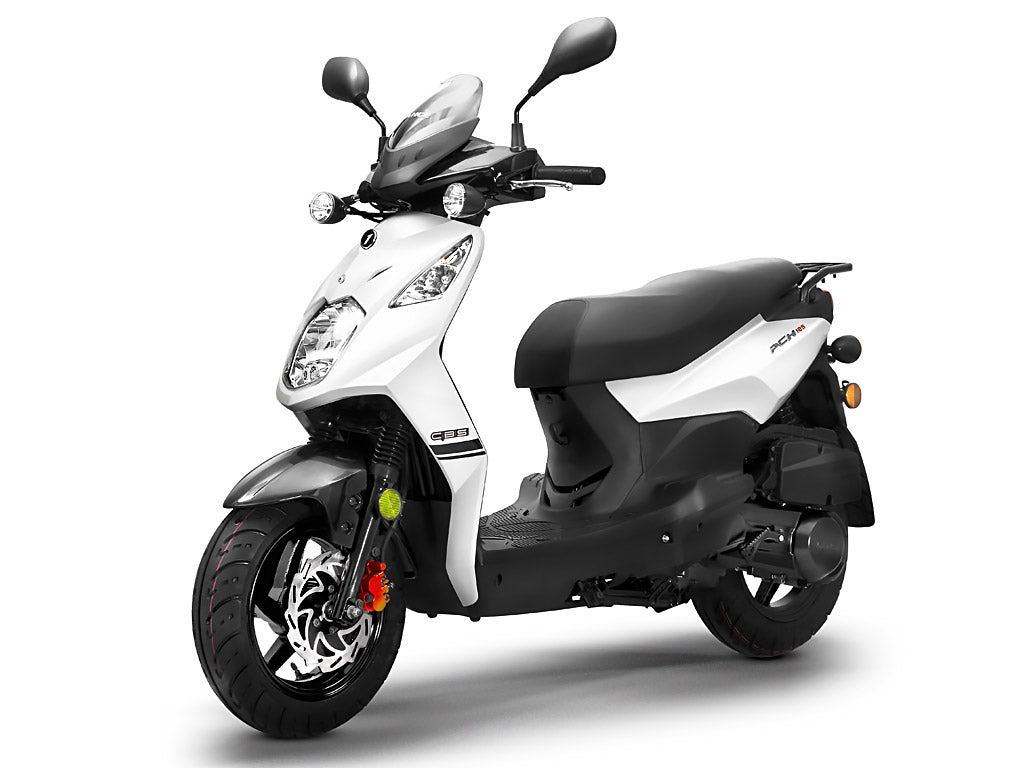

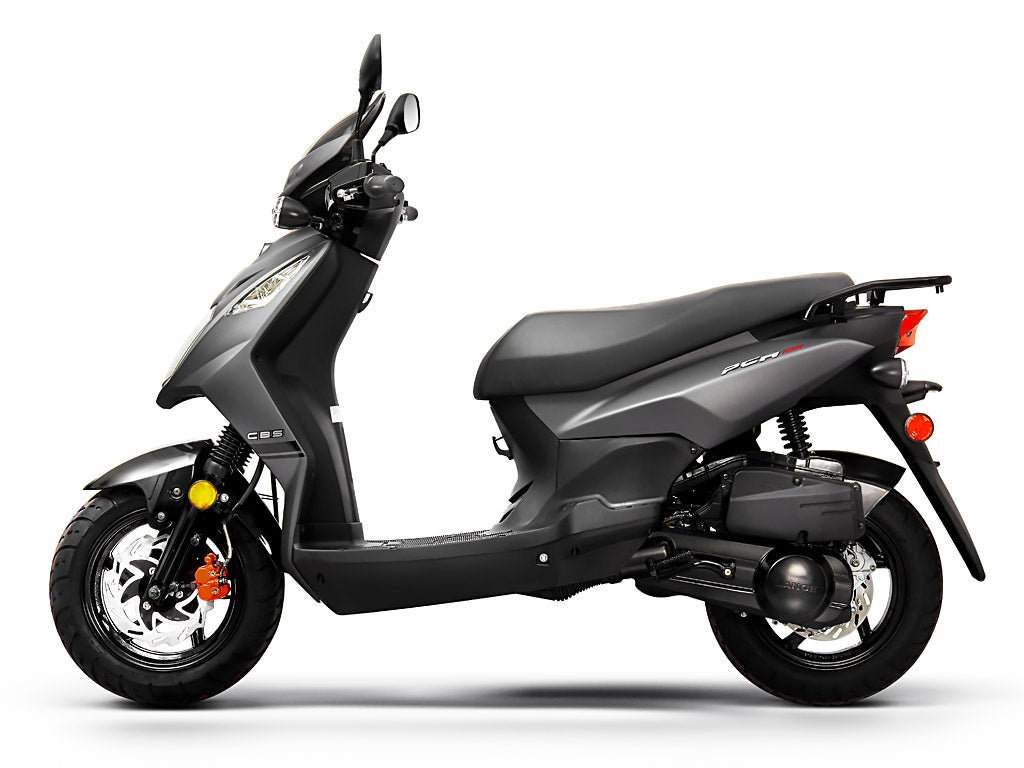

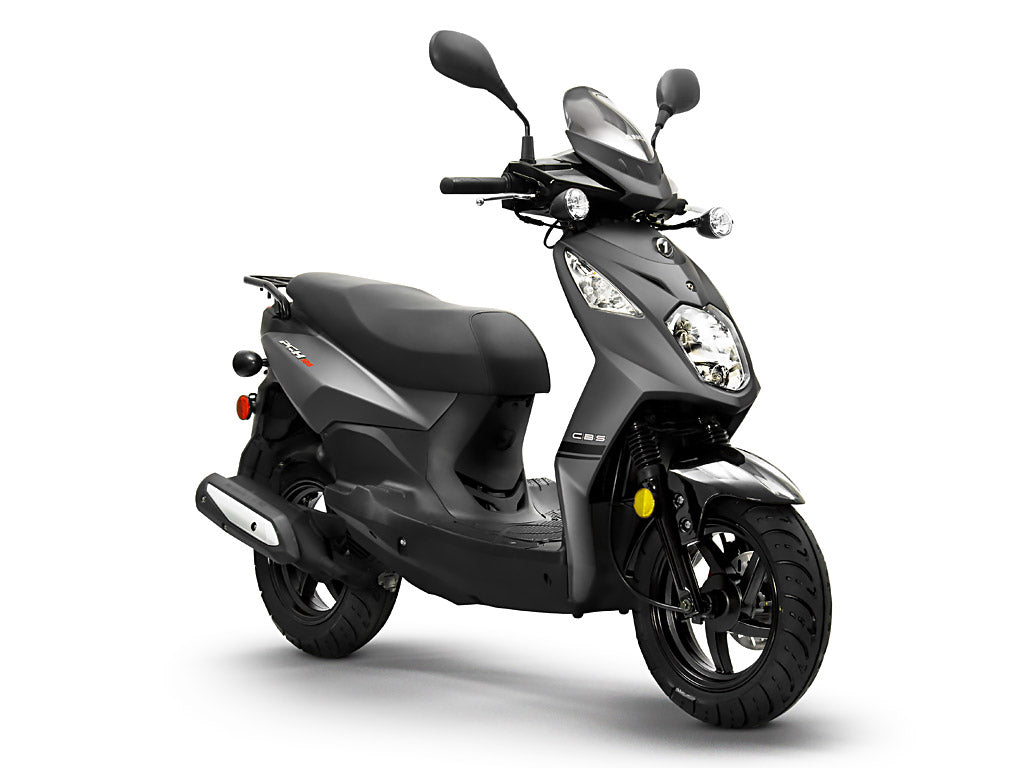

The PCH 200i looks blindingly fast standing still. Every detail catches your eye from the sporty stance to the crisp sharp lines on the front cowl, racy red brake callipers and sporty matte paint finishes, only available on PCH 200i models.



-------------------------------------------------------------------------------------



ENGINE / DRIVE TRAIN
Displacement: 169 cc
Type: 4-Stroke (EFI) Electronic Fuel Injection Engine (OHC) with Ceramic-Coated Cylinder
Compression Ratio: 10.2±0.2 :1
Horsepower: 11.8 hp - 7500 RPM
Max Torque: 9.21 lb/ft - 5500 RPM
Cooling System: Air Cooled
Transmission: C.V.T.
Clutch: Auto Centrifugal Type
Drive: Belt
Starter: Electrical Starter
Ignition: ECU
Spark Plug: CR7HSA
Battery Capacity: 12V 8.6Ah (Closed Type, Maintenance-Free Battery)
Top Speed: 65+ mph
CHASSIS / SUSPENSION / BRAKES
Frame: High Strength Steel
Front Suspension: Telescopic Fork
Rear Suspension: Unit Swing
Front Brakes: Disc (190 mm) with Sport Style Wave Rotor and CBS-Combined Braking System
Rear Brakes: Disc (220 mm) with CBS-Combined Braking System
Front Tires: 120/70 - 12
Rear Tires: 130/70 - 12
Wheel: Aluminum
CAPACIITIES / DIMENSIONS
Weight Capacity: 333 Lbs
Net Weight: 240.3
Fuel: Unleaded (90 octane or higher)
Fuel Capacity: 1.37 Gallons
Ground Clearance: 8.1 in
Length: 75 in
Width: 27.16
Height: 48.74
Seat Height: 31 in
Wheelbase: 52.16 in
Age Recommendation: 16+
ADDITIONAL INFO
Government Certifications: EPA & DOT Approved, C.A.R.B. Approved for CA
Warranty: Build by SYM with 24 months unlimited miles with tire to tire parts and labor warranty assurance
MPG: 89 MPG*
