description
Rider Requirement
Payload
55–220 lbs (25–100 kg)
Recommended Age
14 +
Recommended Height
3'11"–6'6" (120–200 cm)
Lgth. × Wd. × Ht. (Unfolded)
Approx. 43.70 × 20.86 × 48.42 in (1110 × 530 × 1230 mm)

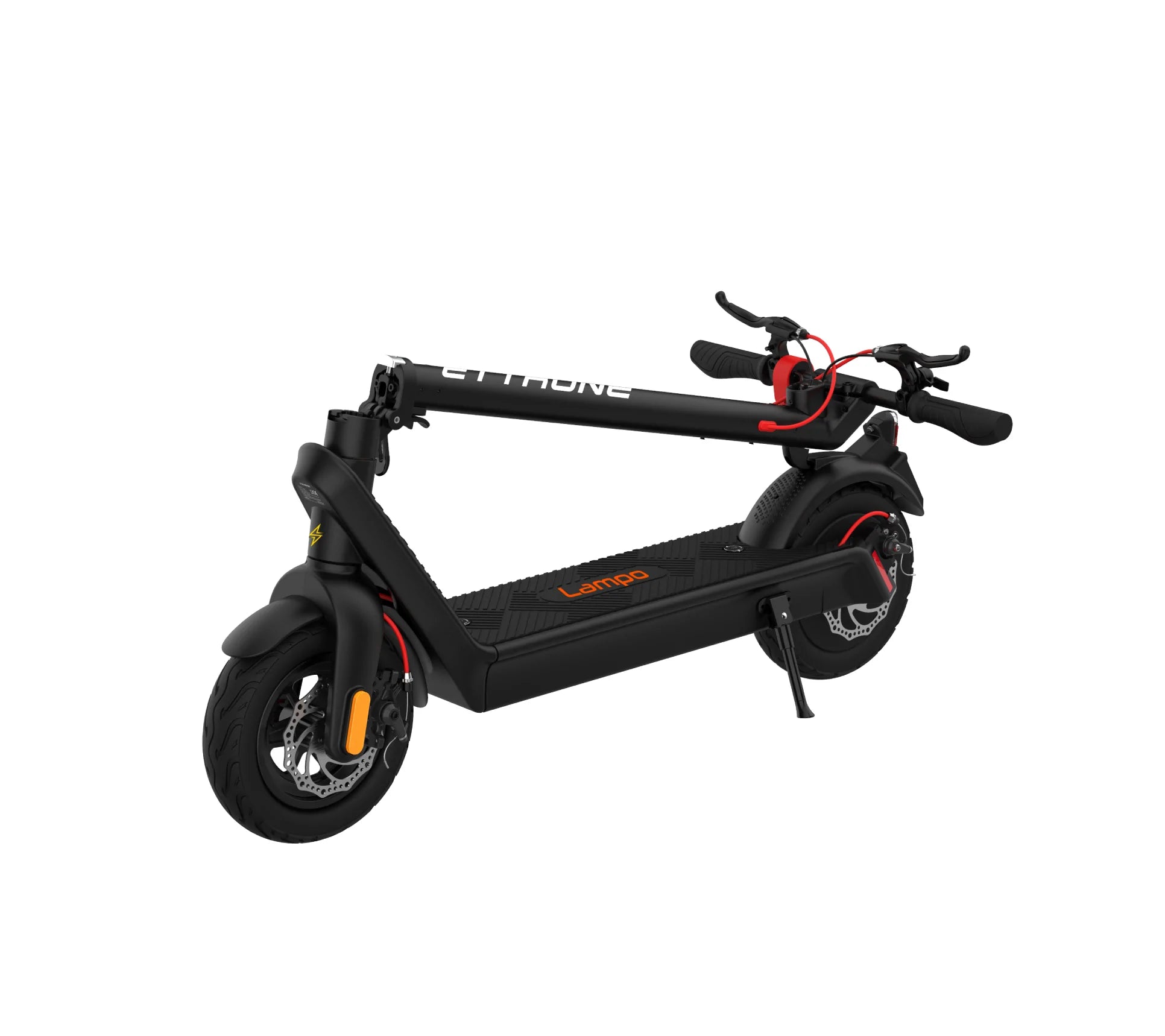

Lgth. × Wd. × Ht. (Folded)
Approx. 43.70 × 20.86 × 21.06 in (1110 × 530 × 535 mm)
Nominal Power
500 W (0.5 kW) @ 36 V
Typical Range
Approx. 40 miles (64 km)
Max. Slope
Approx. 25°
Operating Temperature
32 - 104°F ( 0 - 40°C)
IP Rating
IP54
Charging Time
Approx. 5 - 7 h
Tires
10*2.70 TUBELESS TIRE. Recommended Tire Pressure: 36 PSI / 250 Kpa
Braking Method
Disc Brake and Foot Brake
Nominal Voltage
36 VDC
Charging Temperature
Recommended: 50–95°F (10–35°C);
Maximum: 32–104°F (0–40°C)
Nominal Capacity / Energy
15600 mAh / 562 Wh
Battery Overload Protection
15600 mAh / 562 Wh
Output Voltage
42.4 VDC
Output Current
2 A
Headlight
LED
Tail Light & Brake Light
LED
Digital Dashboard
LED Screen Indicates: Riding Mode, Speed, Battery Charge Level, Error Symbol.
Mode Indicator
No Icon ; White "D" Icon; Red "D" Icon
Frame Material
Alluminium-alloy
