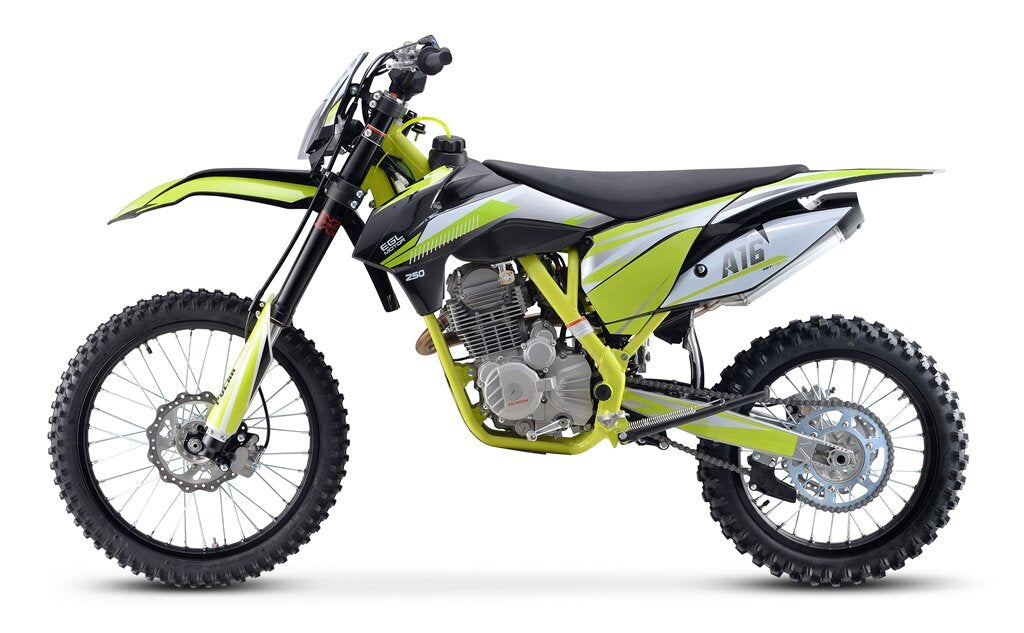

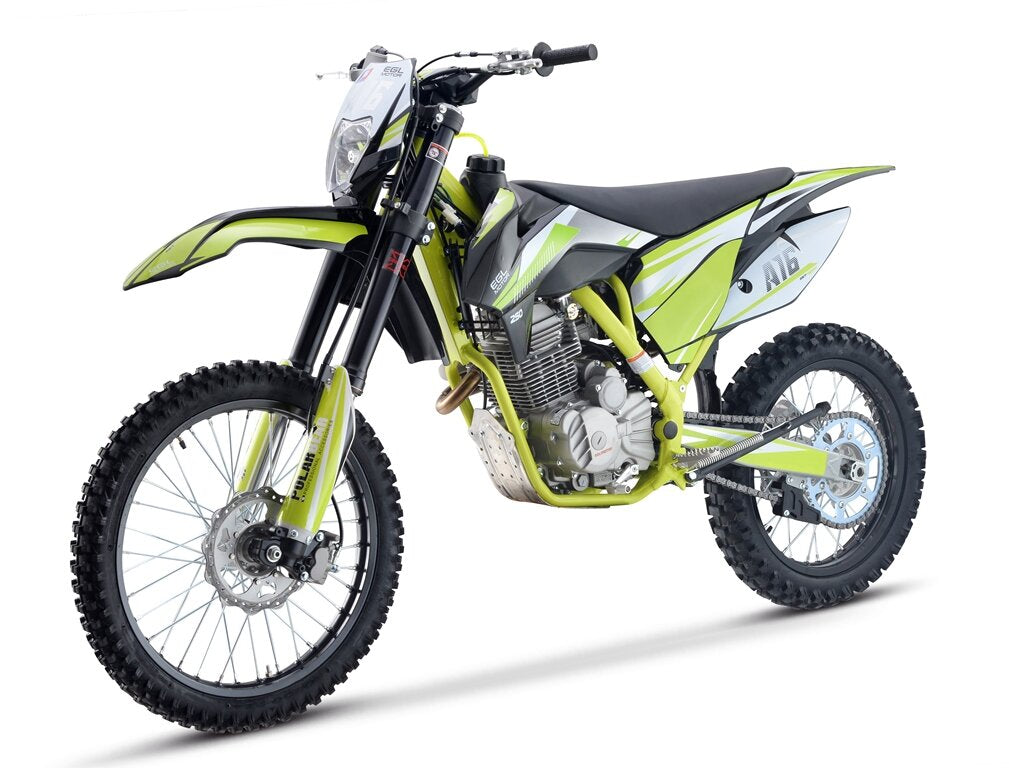

EGL A16 230CC
EGL A16 230CC
EGL A16 230CC

EGL A16 230CC


color
Regular price$2,999.00
/
Shipping calculated at checkout.

POWER

Engine Type CB250-F, Single Cylinder, 4-Stroke, Air Cooling, SOHC

Displacement 249.9 ml

Max Power 14kw / 8500rpm - 19 Hp

Max Torque 18/6500 N.m/r/min

Compression Ratio 9.25:1

Shift Type Manual Wet Multi-Plate, Constant mesh, two stage transmission, 5-Gears

Start Type Electric & Kick Start

Carburetor PE30

Ignition Digital CDI

Drive Train #520 Chain, FT: 13T/RR: 49T Sprocket

PERFORMANCE

Front Fork Φ53*Φ58.5-910mm Inverted Hydraulic Dual Adjustable Forks,265mm Travel

Rear Shock 480mm Dual Adjustable Shock with Ballonet, 120mm Travel

Front Wheel 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21

Rear Wheel 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18

Front Tires 80/100-21

Rear Tires 110/100-18

Front Brake Dual Piston Caliper, 240mm Disc

Rear Brake Single Piston Caliper, 240mm Disc

DETAILS

Frame Central Tube High Strength Steel Frame

Swing-Arm Forged Aluminum Swingarm,L=590mm

Handle Bar Tapered Aluminum #7075

Overall Size 2170x800x1260 mm

Packing Size 1715x445x860mm

Wheel Base 1480 mm

Seat Height 940 mm

Ground Clearance 310 mm

Fuel Capacity 6.5 L / 1.72 Gal.

N.W 115KG

G.W 145KG
