description

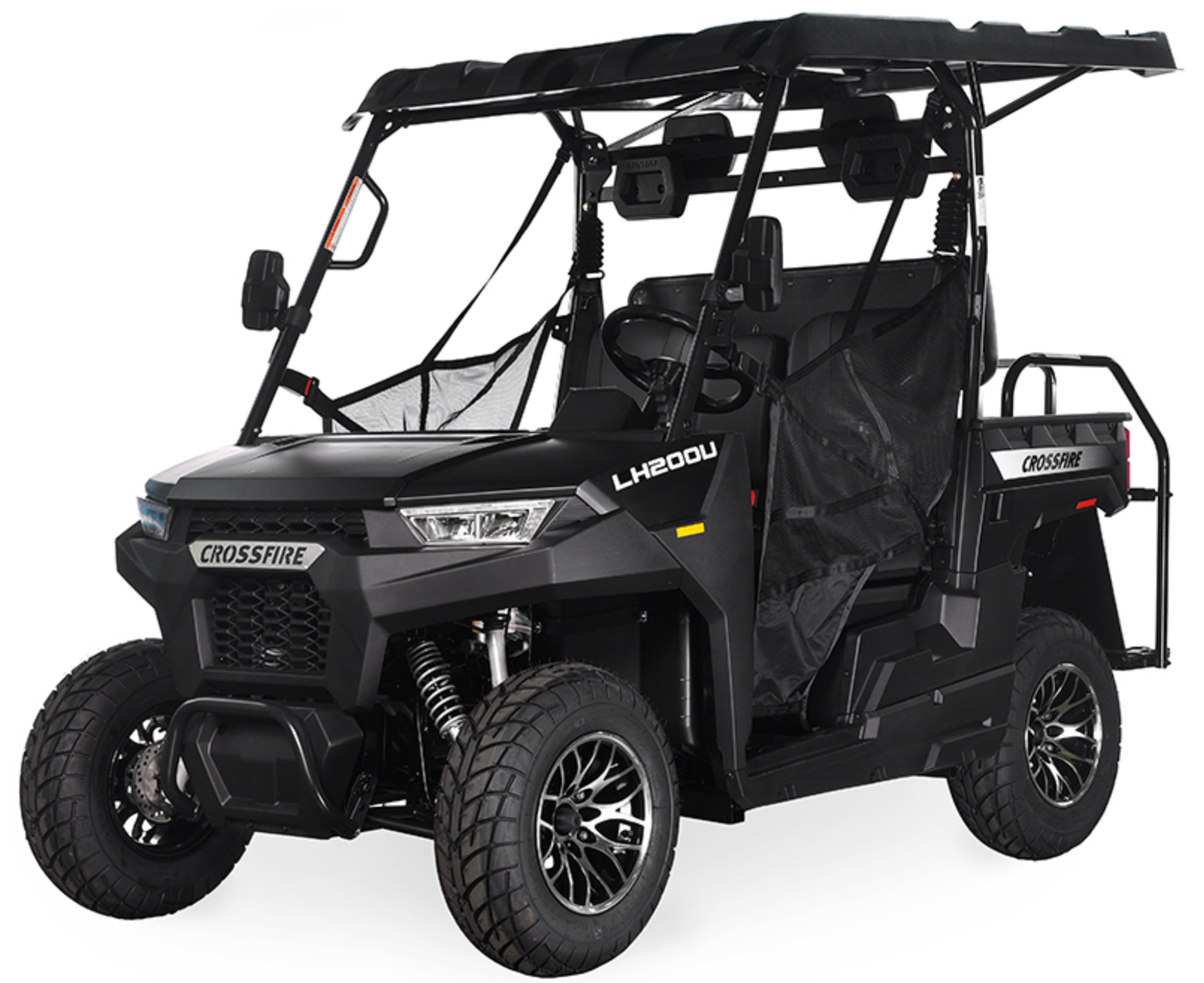

Vehicle specification
Overall Vehicle Size (L x W x H) inch 92×57×72 in
Ground Clearance (inch) 5.5 in
Wheelbase (inch) 69.3 in
Weight with full equipment (lbs)          837.7 lbs
Front/Rear Brakes Four Disc brake
Parking Brake Hand-Actuated
Front Tires AT22 x 7-10
Rear Tires AT22 x 10-10
Front Suspension Dual A-Arm
Rear Suspension Swingarm Dual Shocks
Cargo Box Dimensions (L x W x H) inch 21.8×49.6×6.5 in
Box Capacity (lbs) 441 lbs
Fuel Capacity  3.1 gallon
Engine specification
Cooling Air & Oil
Engine capacity (cc) 177.3 cc
Volumetric Compression Ratio 9.6:1
Drive System Type 2WD
Engine Type Single Cylinder 4-Stroke
Fuel System/Battery Electronic Fuel Injection
Ignition type T.C.I
Start type Electric
Ignition Coil ECU
Horsepower 12
Transmission/Final Drive CVT F/N/R; Chain
Maximum  power (HP /r/min) 12hp/70007500RPM
Maximum Torque (Nm /r/min) 13N·m/6000~6500RPM
Top Speed (mile/h) 30 mile
