description

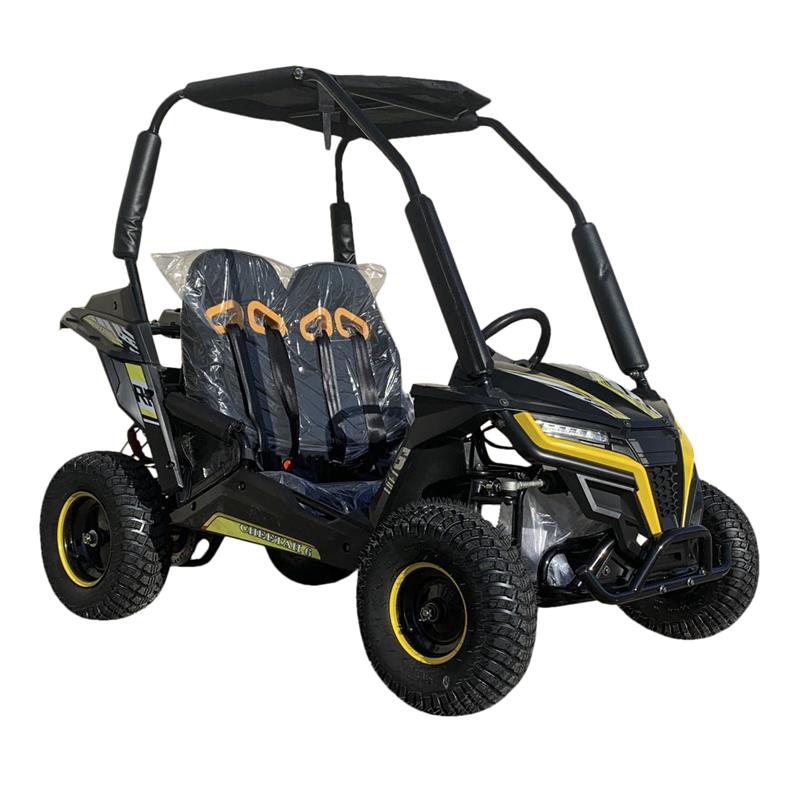

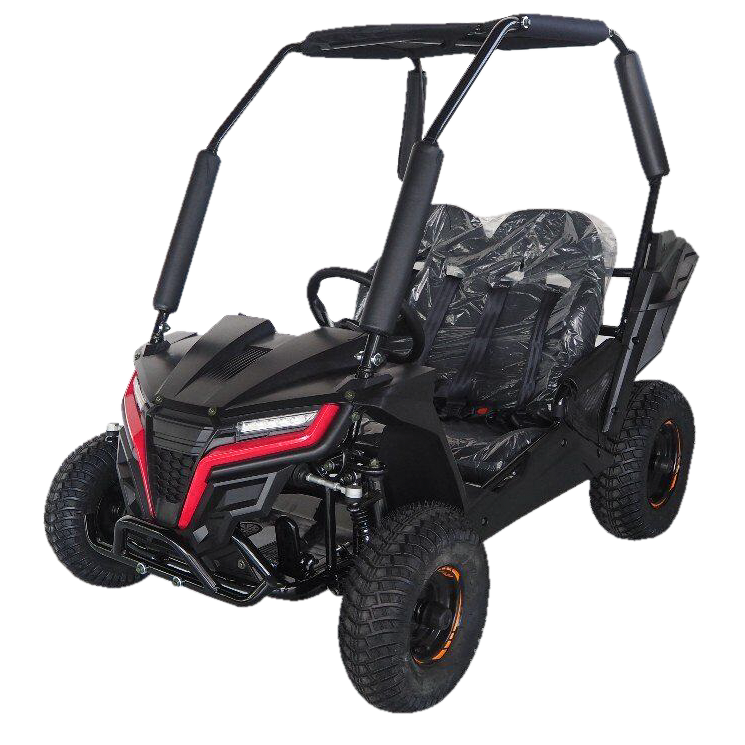

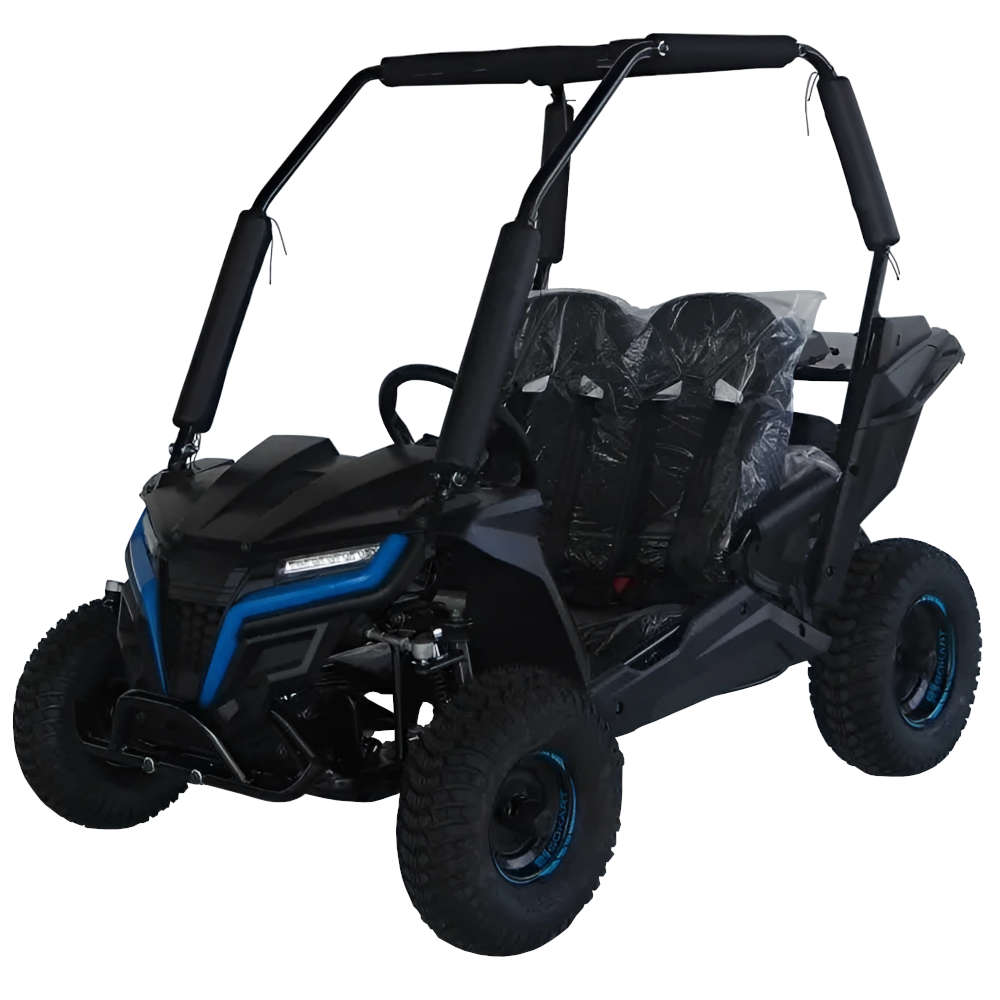

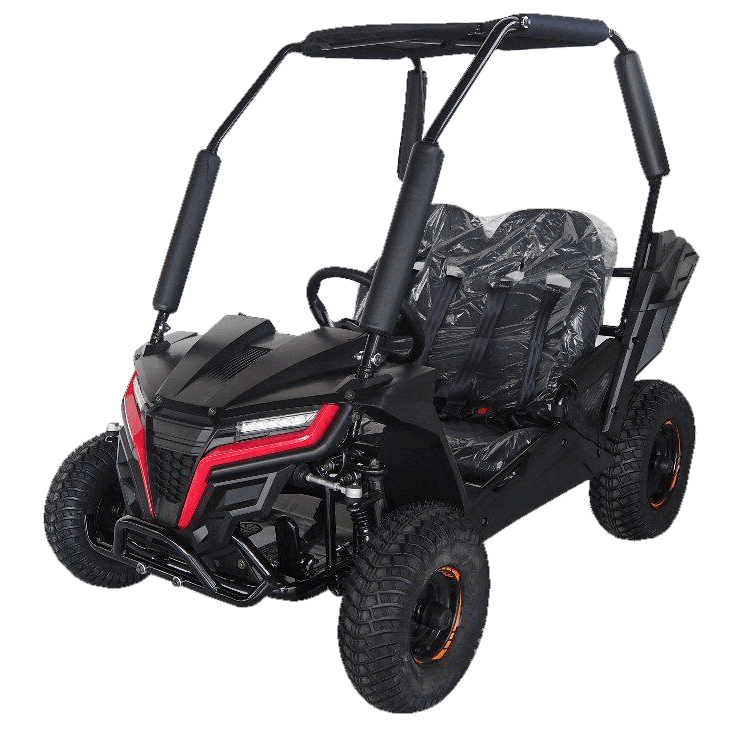

This new kid's size UTV/Go kart includes the following main features:

  • Automatic torque converter VT with reverse, 5.5 HP horizontal OH engine
  • Adjustable seat: pedal to seat back adjustable from 28" to 32", Age Group: 6-12 yrs, fits person up to 5'4"
  • 4 point safety seat belt
  • Remote Start/Kill
  • Speed Governor
  • Electric start with pull start backup
  • Max speed 24 mph

Specifications:

Engine Information

• EPA certificated

  • Engine type: 4-stroke, single cylinder, air cooled, Horizontal OH Engine
  • Displacement: 163cc. 5.5HP
  • Max HP: 3.2KW/3600RPM
  • Max torque: 10.8NM/2800RPM
  • Bore stroke: 2.67x1.77inches
  • Max speed: 24 mph
  • Climbing ability: 12 degrees
  • Starting system: Electric or Pull
  • Battery: YTX12-BS, 12V 10Ah
  • Carburetor brand: P19
  • Engine oil: SAE 10W-40

General Information

  • Clutch: Automatic torque converter VT with reverse
  • Driveline / Driving wheel: Chain / Dual wheel drive
  • Suspension F / R: Double A-arm / swing-arm
  • Brake: Rear disc
  • Tires, F / R: 145/70-6/16*6-8
  • Wheel: Steel
  • Fuel capacity: 1 gal
  • Weight, G.W. / N.W.: 308 / 264 lbs
  • Max load: 200 lbs

Dimension Information

  • Wheelbase: 43.7 inches
  • OAL×Wx H: 63×36×50 inches
  • Height to seat: 14.2 inches
  • Min ground clearance: 3.6 inches
  • Pedal to seat back distance: 28" to 32"
  • Packing size: 60X32X21 inches
