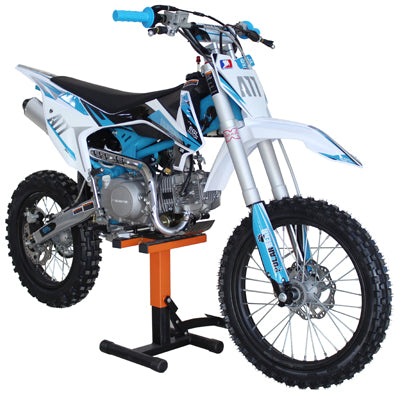

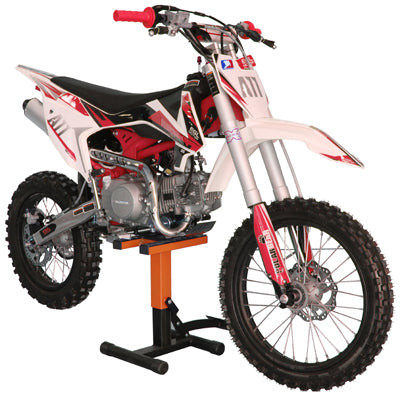

A-11
(A11-ME)
Engine : 125cc, 4 stroke, Single Cylinder
Transmission : 4-Speed,Manual Clutch
Cooling : Oil-Cooled
Ignition System : CDI
Starting System : Electric/Kick Start
Battery: 12V,4Ah
Final Drive : Chain Drive
F/Brake : Hydraulic Disc (Hand)
R/Brake : Hydraulic Disc (Foot)
Fuel Capacity :4.5L
Max Speed : 35-45 MPH
Front Tire : 90/100-17, Knobby Tire
Rear Tire: 70/100-14, Knobby Tire
Front Suspension: L=735mm up side down, not adjustable
Rear Suspension: L=280mm, not adjustable
Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))
Max Torque[N.m/r/m]: 8.8(1±10%))/(5500(1±5%))
Compression Ratio: 9.0:1
Seat Height: 32"
Ground Clearance: 13.8"
Max Load: 185 LBS
Weight: G.W.188LBS, N.W.144LBS
Bore & Stroke: 54X54
Wheelbase: 1220±3mm
Carton Dimensions: L*W*H*: 59"x17"x31"
Color: Blue/Red/Orange/ Green
