ENGINE INFORMATION


• EPA Certificated
• Engine Type: 4-stroke, single cylinder, air and oil cooled
• Displacement: 177.3cc
• Compression Ratio: 8.8:1
• Max HP: 9.5HP
• Bore & Stroke: 62.5X57.8 mm
• Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)
• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)
• Max Speed: 25mph
• Climbing Ability: 30 degrees
• Ignition: C.D.I
• Starting System: Electric
• Battery: 12V 9Ah
• Carburetor Brand: Deli
• Engine Oil: SAE 15W/40

GENERAL INFORMATION


• Transmission: Auto, L-H-N-R
• Drive Train: Shaft Drive; 2 WD:
• Drive Mode: Rear Shaft Drive, Rear differential
• Suspension, F/R: Front MacPherson, Rear Dual A-ARM
• Brakes, F / R: Both hydraulic brakes,
Disc
• Tires, F / R: 24 x 8-12 / 24 x 8-12
• Fuel Tank Capacity: 4.8 gallons
• Wheels: Aluminum
• Weight, G.W. / N.W.: 1136 lbs/ 880 lbs
• Max Load: 800 lbs

DIMENSION INFORMATION


• Wheelbase: 63”
• OA L x W x H: 108”x54”x74”
• Seat Height: 33”
• Min Ground Clearance: 11”





KEY FEATURES

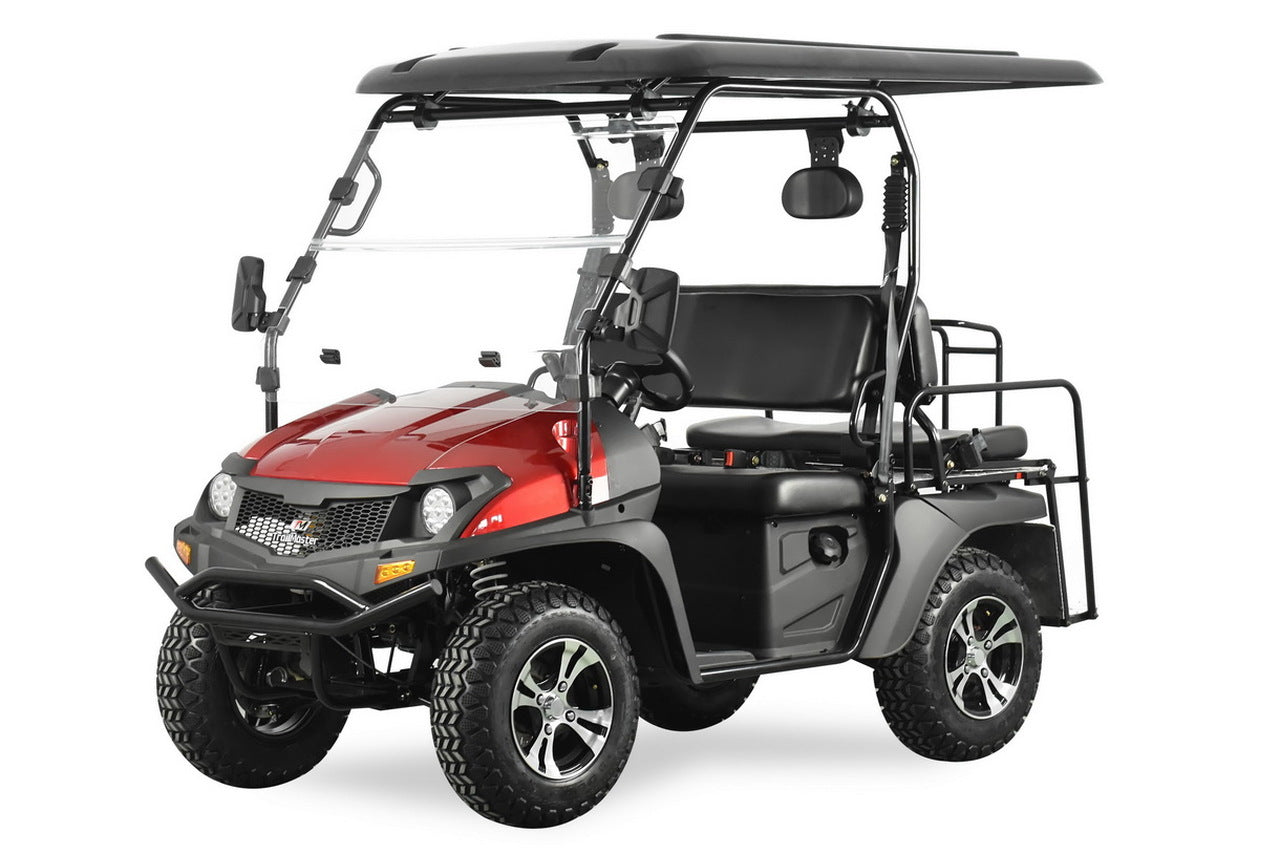

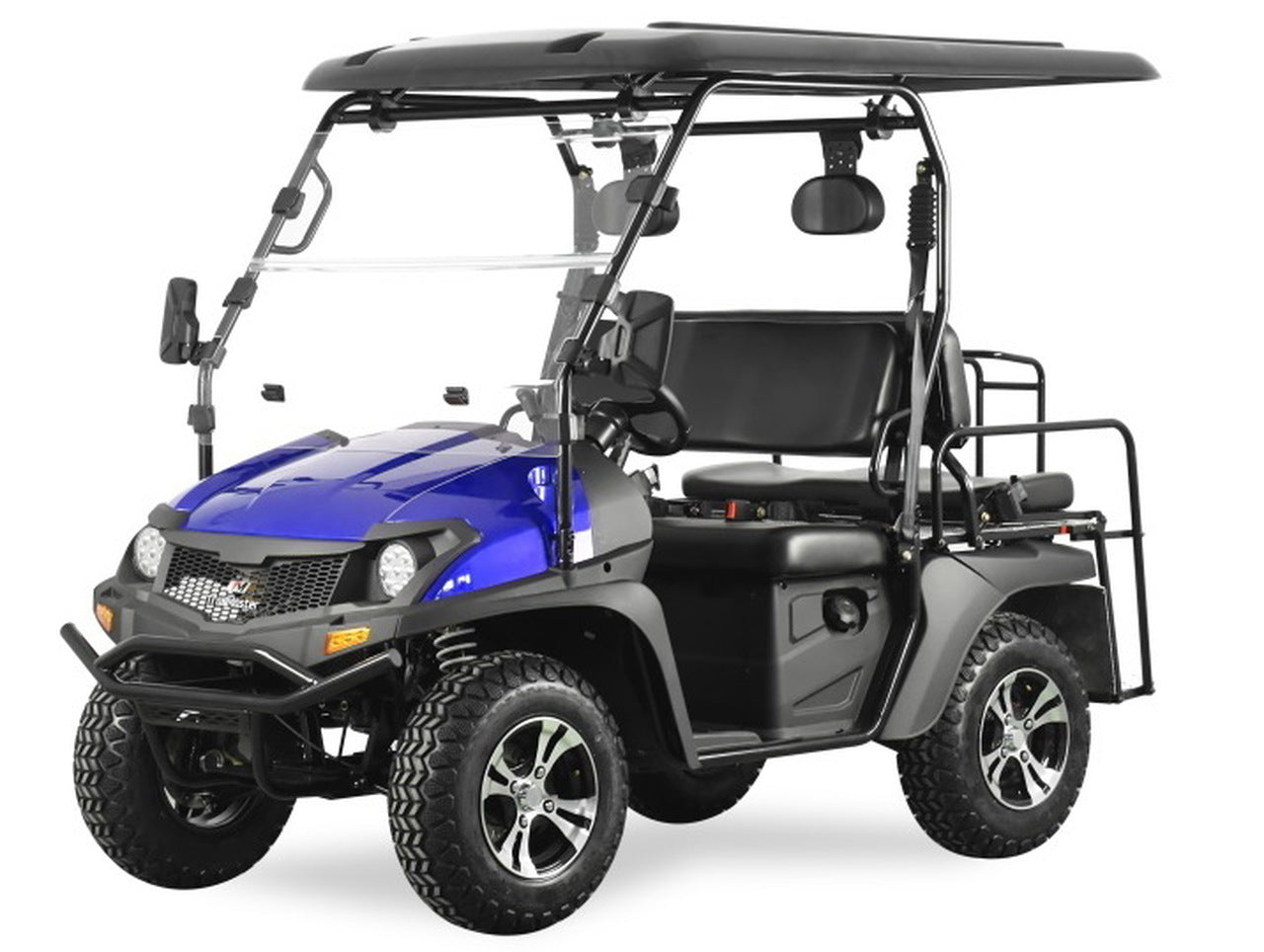

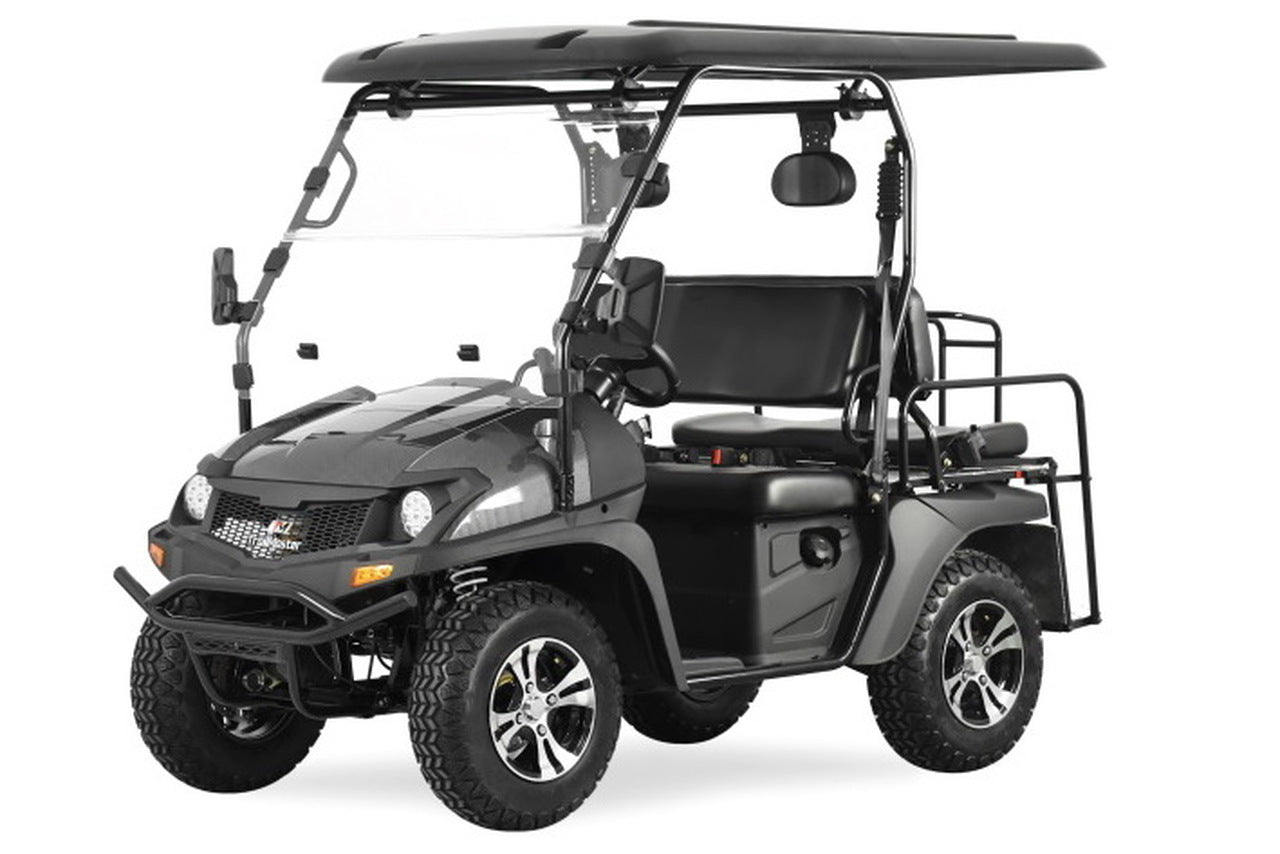

• Equipped with rear flip seat with extended hard roof top. Can be used as a neighborhood golf cart to carry up to 4 persons.
• Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
• Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat
• Digital dashboard
• LED Hi/Lo head light
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Safety harness seatbelt
• Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12
• Polished aluminum wheels
• Extended Hard top
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Large gas tank
• Horn
