Engine Information
EPA certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 169cc
Max HP: 11hp/7500rpm
Max torque:8.2 lb ft/6000rpm
Bore x stroke: 2.4x2.28 inches
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 15W-40
General Information
Clutch: Automatic CTV with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 22x7-10 / 22x10-10
Wheel: Alumilum
Fuel capacity: 2.64 gal
Weight, G.W. / N.W.: 650 / 521 lbs
Max load: 500 lbs
Dimension Information
Wheelbase: 71 inches
OA L x W x H: 92.1x55x58.3 inches
Height to seat: 18.5 inches
Min ground clearance: 5.9 inches
Pedal to seat back distance: 36” to 42”

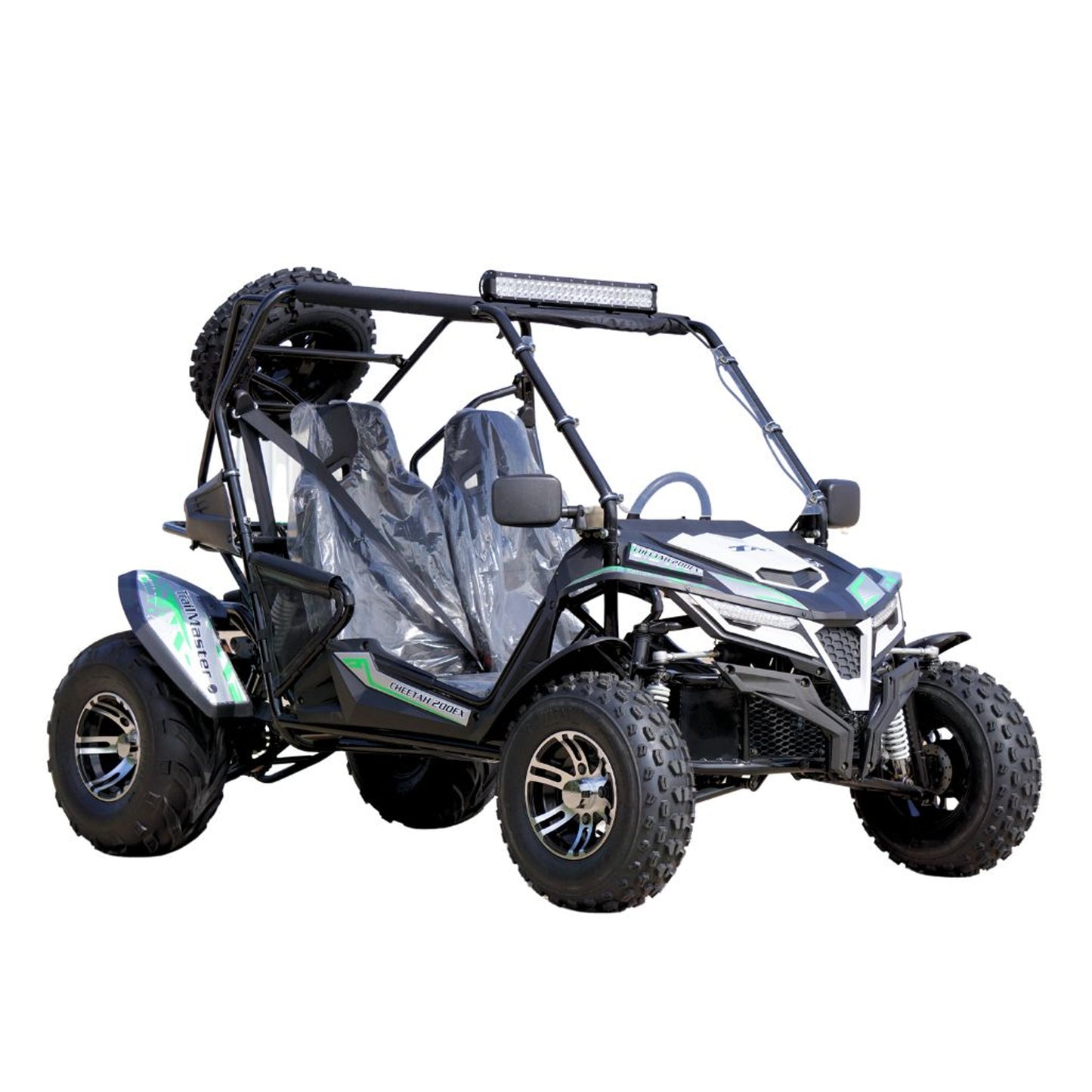

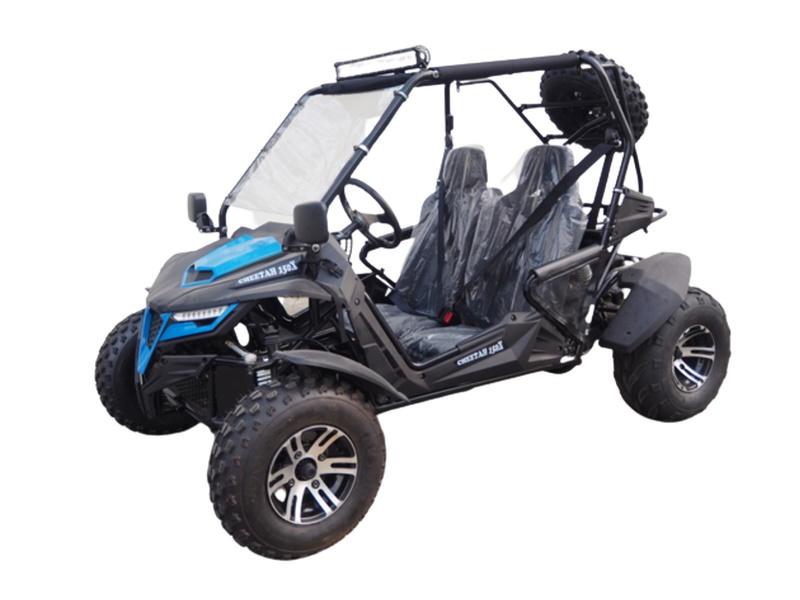

Sporty stylish design
Articulating rear suspension equipped with anti-slop pull belts, much harder to roll over comparing to other rear solid axle machines
Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
Top LED light bar
Spare tire
High quality windshield
Side rearview mirrors
3 point automotive style retractable seat belt
LED headlight and turn signal
Electric start with kill switch
Fully automatic with reverse, high performance 169cc GY6 engine with internal F-N-R
Adjustable steering wheel
Individual sports seats
Bikini sunshade top
Adjustable driver seat: pedal to seat back adjustable from 36” to 42”
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Large 22” front and rear tires
Parking brake
4-wheel stylish fenders
Large rear utility rack
Large gas tank
