description

Trailmaster Panther 550Cc Utv, Automatic with locking differential, single cylinder, liquid cooled

Key features:

  • Hard top
  • 3000lb-winch
  • Windshield
  • Side Nets
  • Four Wheel Drive, Front and Rear differential with lock
  • Liquid cooled high performance 498.6 cc  34 HP engine, with max power 24Kw
  • Equipped with H/L gear, can climb up to 30 degree slopes with ease with full capacity
  • Bench seat can fit up to 3 persons
  • Flip cup holder
  • Large storage space under seat
  • Four-wheel independent suspension for much better driving experience
  • EFI
  • Digital speedometer/odometer
  • LED Hi/Lo beam head light
  • Rear view center and side mirrors
  • Sporting steering wheel
  • Turn signals
  • Safety harness seatbelt
  • Big off-road tires: F / R: 26 x9-14 / 26 x 11-14
  • Polished aluminum wheels
  • Front bumper
  • Adjustable heavy duty front and rear shock absorber
  • Rack and pinion steering wheel
  • Front and rear hydraulic disc brake
  • Large gas tank
  • 12v power outlet
  • Horn

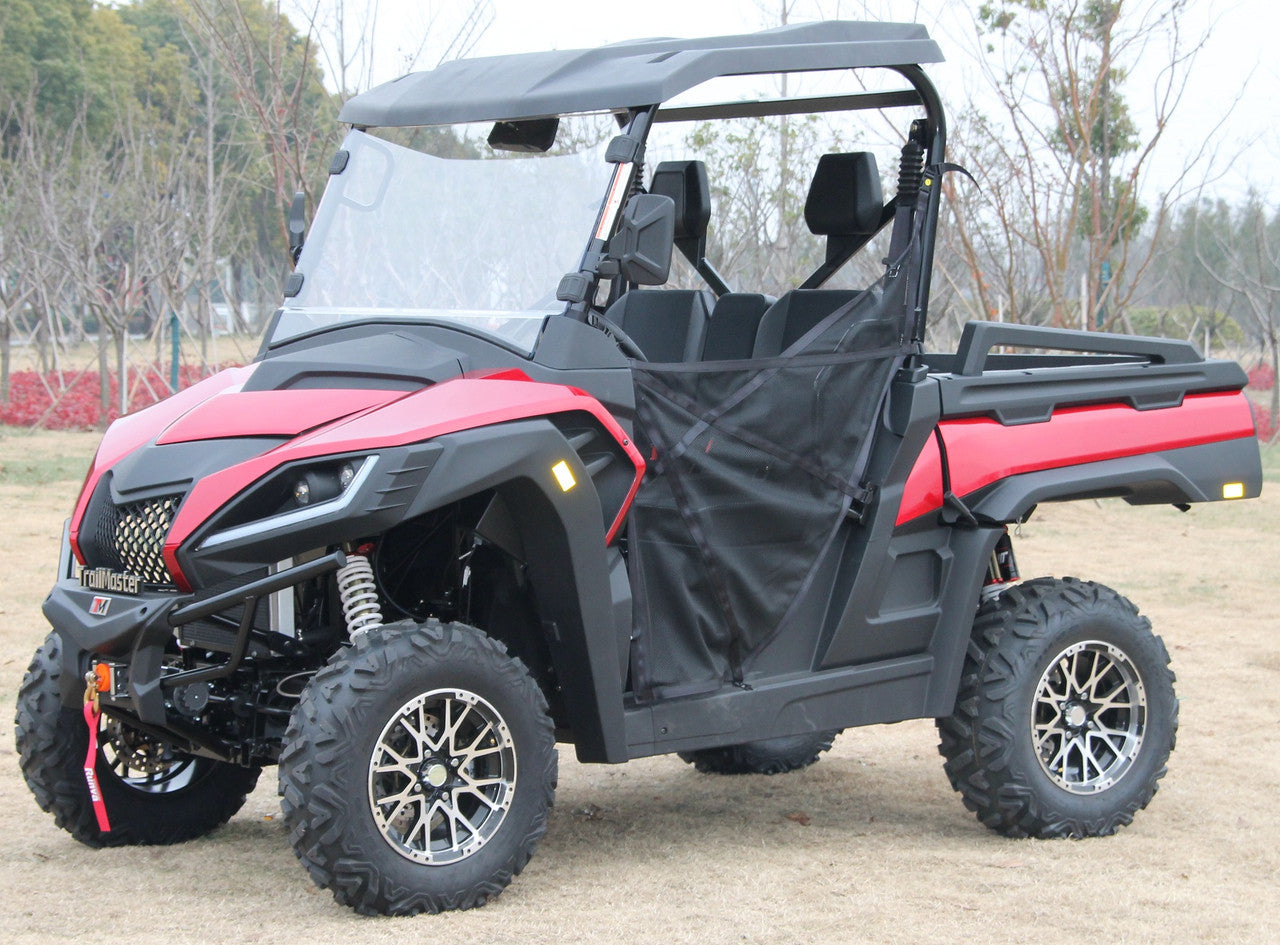

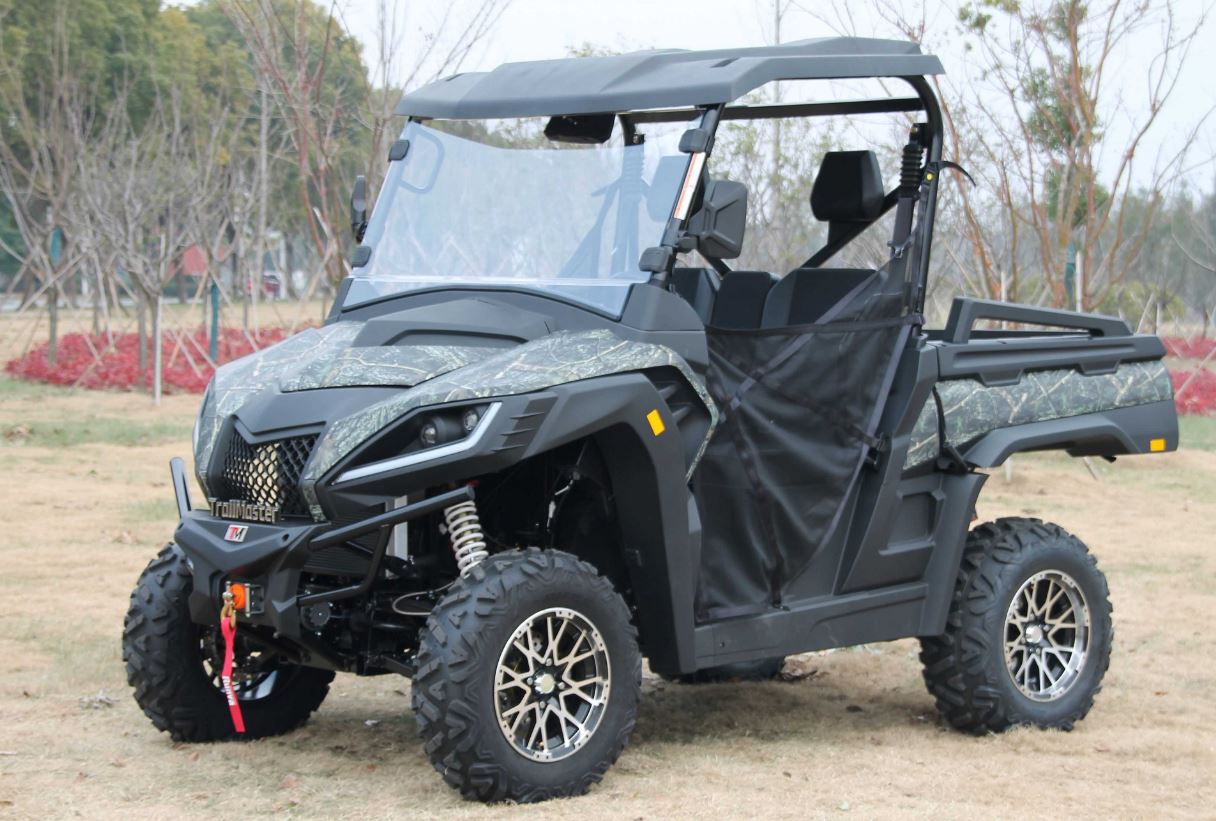

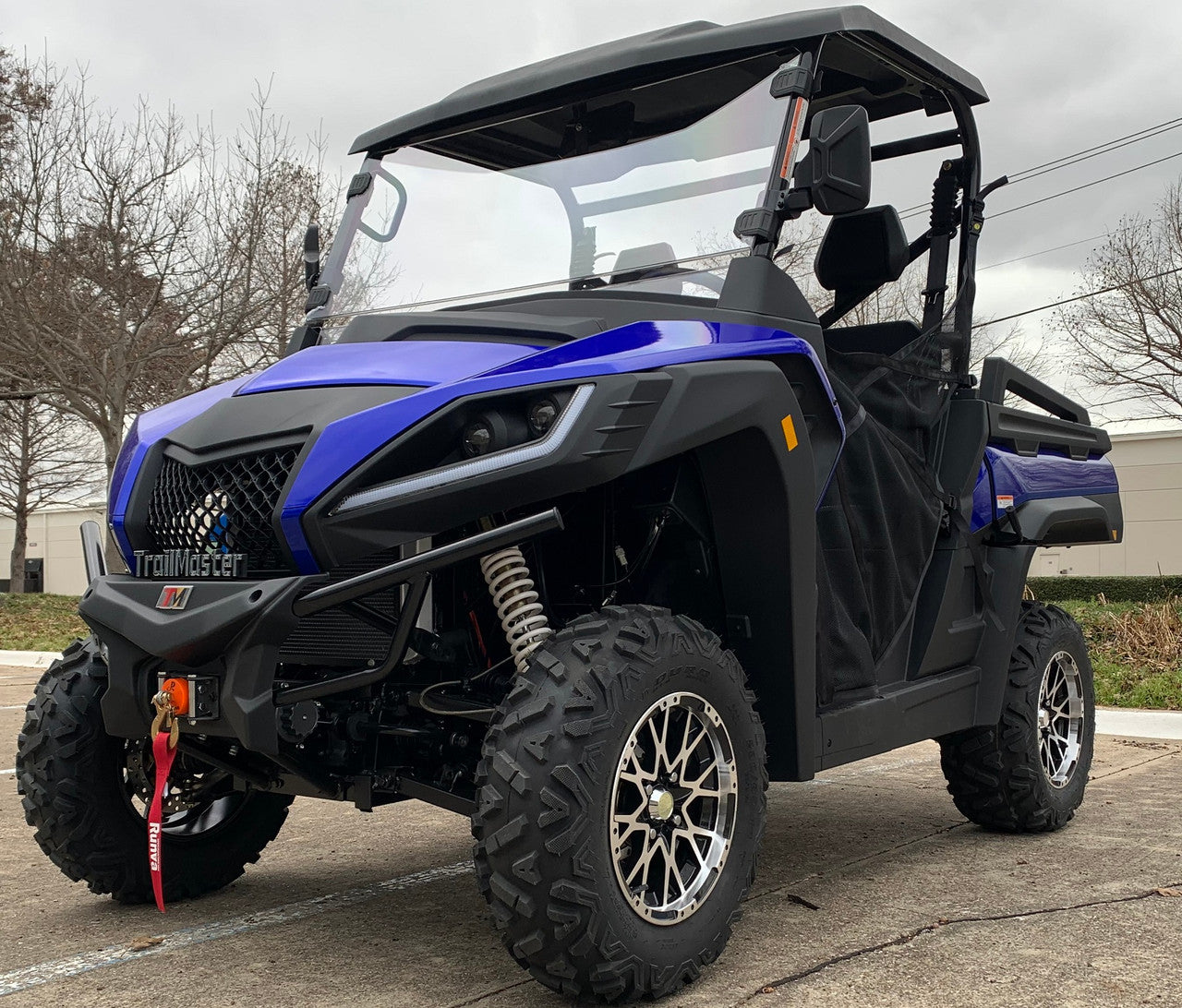

This model comes in red, blue, green and Camo colors.

TECHNICAL SPECS

Engine Information

EPA Certificated

Engine Type: 4-stroke, single cylinder, liquid cooled

Displacement: 498.6cc

Compression Ratio: 10.2:1

Max HP: 34HP

Bore & Stroke: 92(mm) & 75(mm)

Max Power and Crankshaft Speed: 24/6300kW/r/min

Max Speed: 50mph

Climbing Ability: 30 degrees

Ignition: ECU

Fuel System: EFI

Starting System: Electric

Battery: 12V 30Ah

Engine Oil: SAE 15W/40

General Information

Transmission: Automatic, L-H-N-R, with locking differential

Drive Train: Shaft Drive; 2WD-4 WD:

Drive Mode: Four Wheel Drive, Front and Rear differential with lock

Suspension, F / R: Front MacPherson, Rear Dual A-ARM

Brakes, F / R: Both hydraulic brakes, Disc

Tires, F / R: 26 x 9-14 / 26 x 11-14

Fuel Tank Capacity: 7.93 gallons

Wheels: Aluminum

Weight, N.W.: 1386 lbs

Max Load: 1000 lbs

Dump Bed Capacity: 550 lbs

Towing Capacity: 820 lbs

Dimension Information

Wheelbase: 74”

OA L x W x H: 120.6”x63.7”x80.7”

Seat Height: 18.9” (From floor board to seat)

Min Ground Clearance: 11.4”

Bump Bed Size: 48”X36.4”x11.8”
