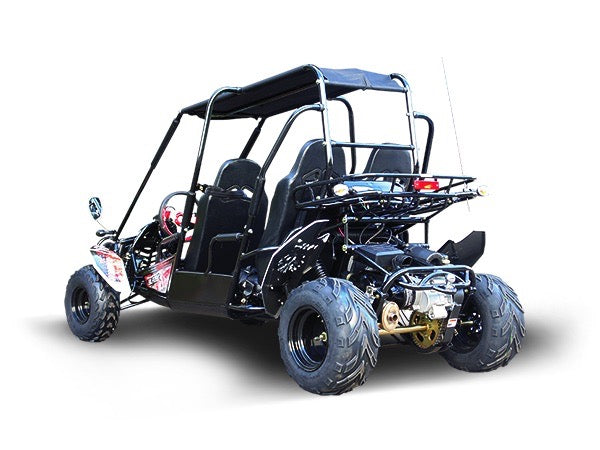

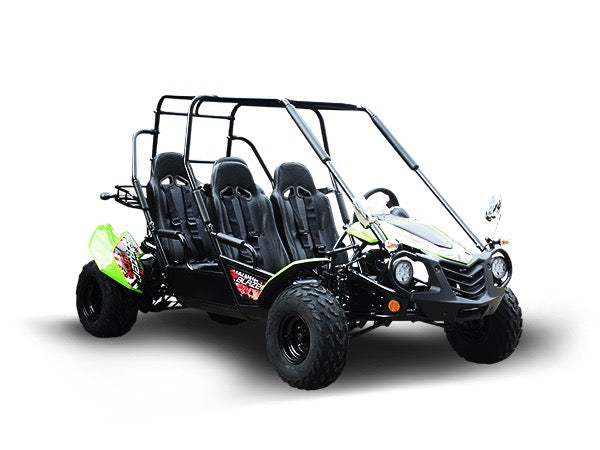

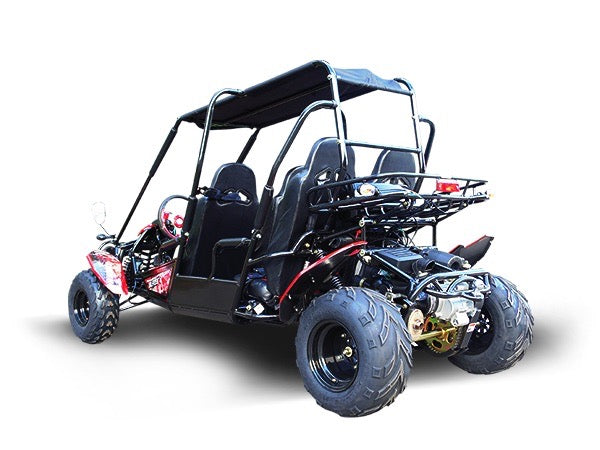

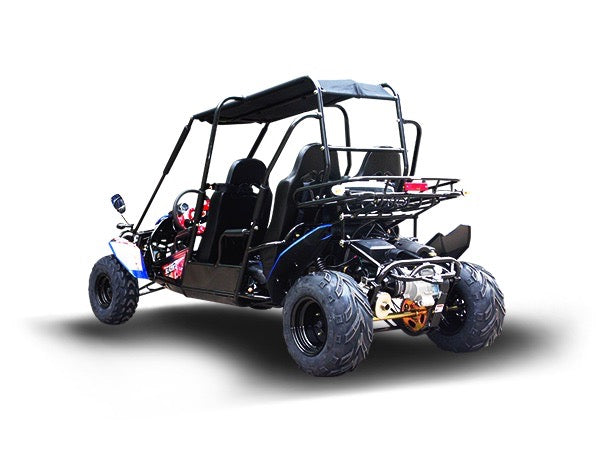

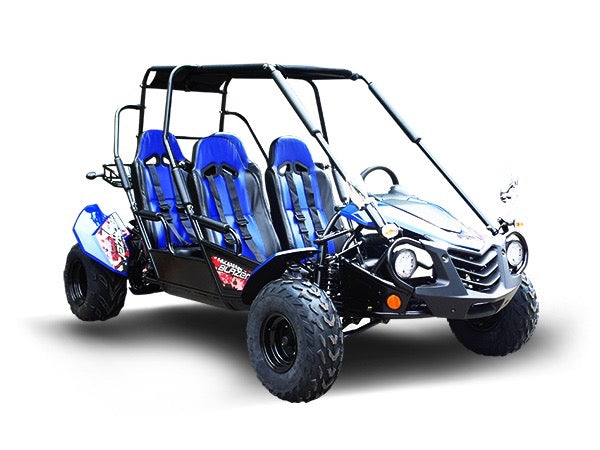

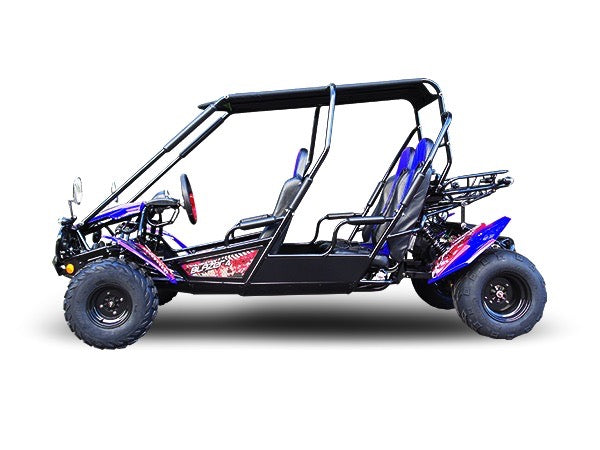

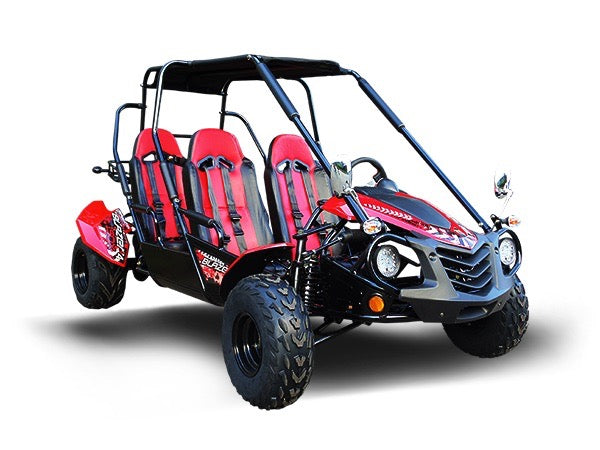

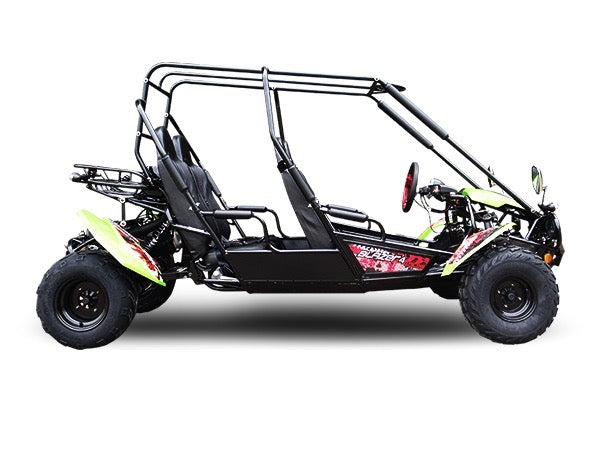

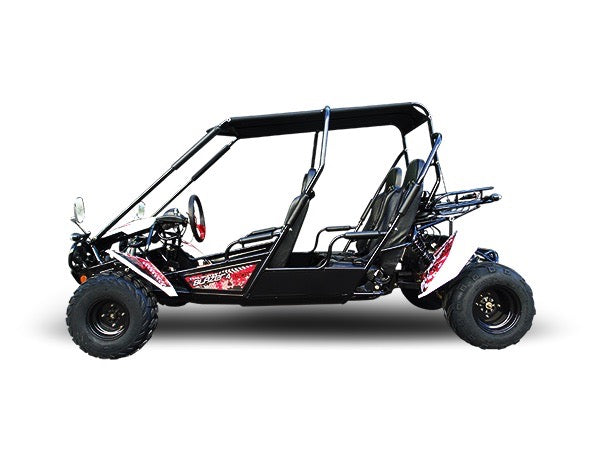

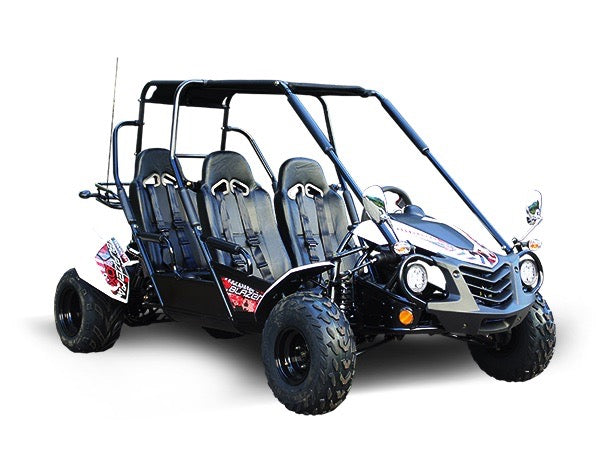

BLAZER 4 200 (E)X

description

PRODUCT INFORMATION

Engine Information

EPA certificated

Engine type: 4-stroke, single cylinder, air cooled

Displacement: 168.9cc

Max HP: 11.1hp/8000rpm

Max torque: 8.1 lb ft/6000rpm

Bore x stroke: 2.4x2.28 inches

Climbing ability: 18 degrees

Min. turning radius: 229 inches

Ignition: ECU (for Blazer4 200EX) & C.D.I (for Blazer4 200X)

Starting system: Electric

Battery: 12V 10Ah

Engine oil: SAE 15W/40


General Information

Clutch: Automatic CVT with reverse

Driveline / Driving wheel: Chain / Dual wheel drive

Suspension, F / R: Dual A-arm / swing-arm

Brakes, F / R: Both hydraulic brakes, Disc

Tires, F / R:  20 x 7-8 / 21 x 10-10

Fuel capacity: 2.25 gal

Weight, G.W. / N.W.:  850 lbs/ 728 lbs

Max load: 800 lbs


Dimension Information

Wheelbase: 88 inches

OA L x W x H: 116.1x54.5x55.5 inches

Height to seat, F/R: 17 inches/ 20 inches

Distance from F to R seat: 26 inches

Min ground clearance: 15.8 inches

Pedal to seat back distance: 36-42 inches
